YMvK ss Dca-s2 ULTRAFLEX 0.6/1 kV

YMvK ss Dca-s2 ULTRAFLEX 0.6/1 kV YMvK ss Dca-s2 ULTRAFLEX 0.6/1 kV

YMvK ss Dca-s2 ULTRAFLEX 0.6/1 kV

YMvK ss Dca ULTRAFLEX® is a power cable according to fire classification Dca-s2,d2,a3, for usage in low voltage installations up to 0.6/1 kV in housing, residential and similar installations with a medium fire hazard level

Read more
Download all documents Find distributor
Contact us

Products

Actions
Filters

  • products

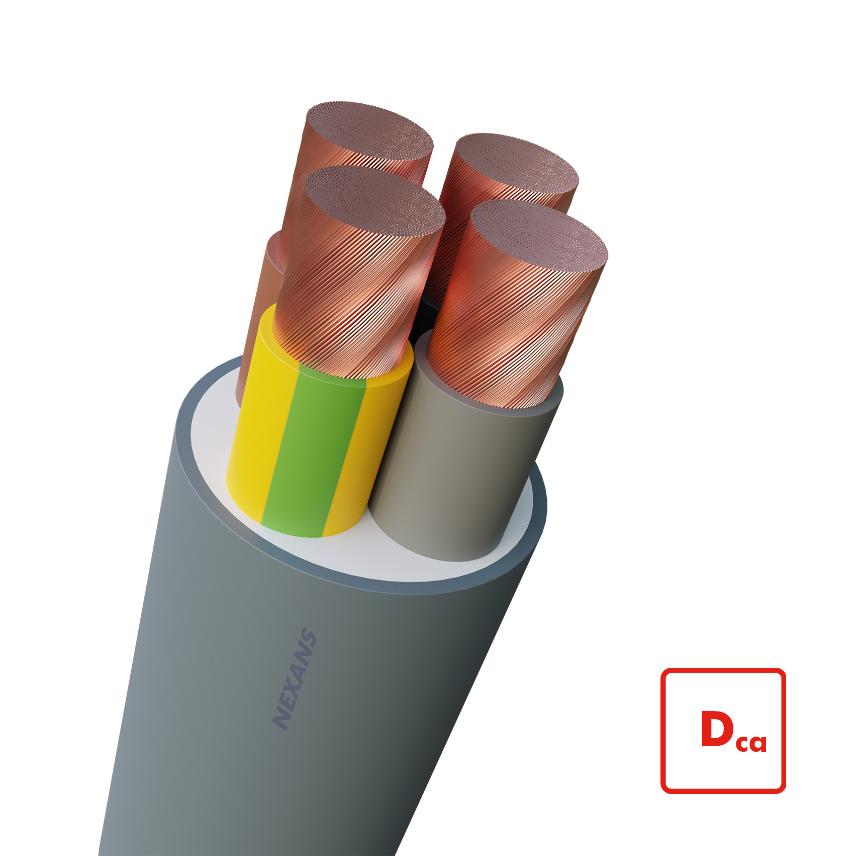

YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G10 mm2 NEW

Nexans ref. 10559998

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Outer Diameter: 18.6 mm
  • Approximate weight: 682 kg/km
  • Permissible current rating in open air: 75 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G10 mm2 NEW

Nexans ref. 10559999

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Outer Diameter: 20.2 mm
  • Approximate weight: 829 kg/km
  • Permissible current rating in open air: 75 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G16 mm2 NEW

Nexans ref. 10559939

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Outer Diameter: 21.4 mm
  • Approximate weight: 968 kg/km
  • Permissible current rating in open air: 100 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G16 mm2 NEW

Nexans ref. 10559997

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Outer Diameter: 23.3 mm
  • Approximate weight: 1187 kg/km
  • Permissible current rating in open air: 100 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G25 mm2 NEW

Nexans ref. 10559996

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Outer Diameter: 25 mm
  • Approximate weight: 1437 kg/km
  • Permissible current rating in open air: 127 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G25 mm2 NEW

Nexans ref. 10559977

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Outer Diameter: 27.5 mm
  • Approximate weight: 1752 kg/km
  • Permissible current rating in open air: 127 A

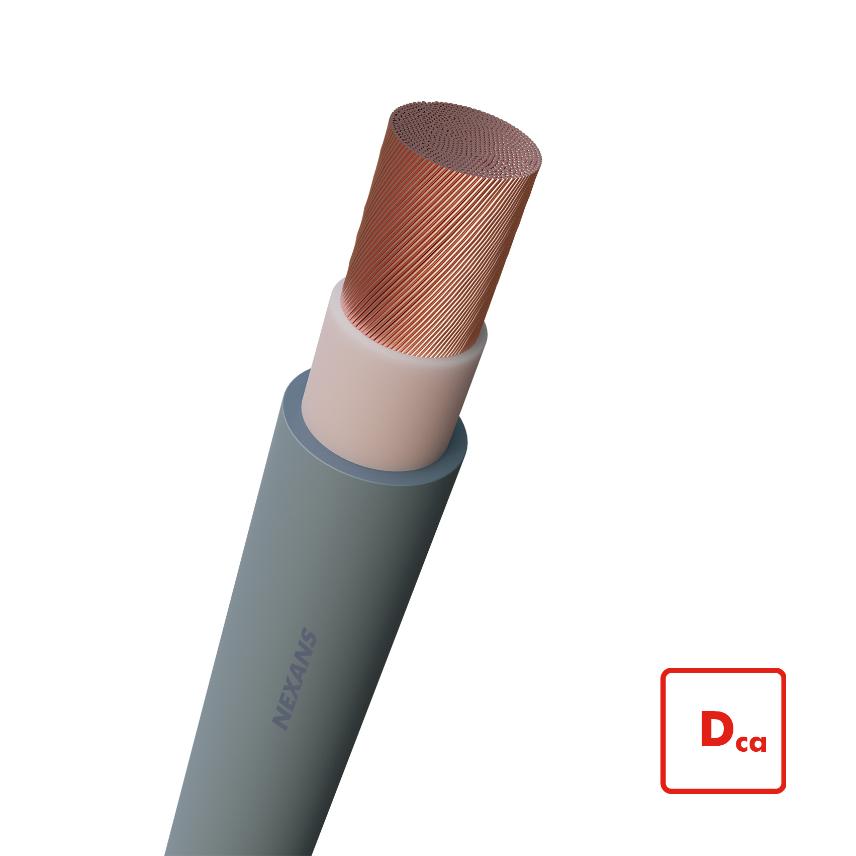

YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x35 mm2 NEW

Nexans ref. 10559900

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 35 mm²
  • Outer Diameter: 12.7 mm
  • Approximate weight: 422 kg/km
  • Permissible current rating in open air: 169 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G35 mm2 NEW

Nexans ref. 10559902

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Outer Diameter: 27.8 mm
  • Approximate weight: 1929 kg/km
  • Permissible current rating in open air: 158 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G35 mm² NEW

Nexans ref. 10559989

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Outer Diameter: 30.6 mm
  • Approximate weight: 2338 kg/km
  • Permissible current rating in open air: 158 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1X50 mm2 NEW

Nexans ref. 10559898

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 50 mm²
  • Outer Diameter: 13.7 mm
  • Approximate weight: 535 kg/km
  • Permissible current rating in open air: 207 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G50 mm2 NEW

Nexans ref. 10560006

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Outer Diameter: 30.7 mm
  • Approximate weight: 2472 kg/km
  • Permissible current rating in open air: 192 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G50 mm2 NEW

Nexans ref. 10560005

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 50 mm²
  • Outer Diameter: 34 mm
  • Approximate weight: 3034 kg/km
  • Permissible current rating in open air: 192 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x70 mm2 NEW

Nexans ref. 10559901

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 70 mm²
  • Outer Diameter: 15.8 mm
  • Approximate weight: 749 kg/km
  • Permissible current rating in open air: 268 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G70 mm2 NEW

Nexans ref. 10559946

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Outer Diameter: 36.1 mm
  • Approximate weight: 3474 kg/km
  • Permissible current rating in open air: 246 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G70 mm2 NEW

Nexans ref. 10559963

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 70 mm²
  • Outer Diameter: 40 mm
  • Approximate weight: 4282 kg/km
  • Permissible current rating in open air: 246 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x95 mm2 NEW

Nexans ref. 10559907

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 95 mm²
  • Outer Diameter: 18.1 mm
  • Approximate weight: 1020 kg/km
  • Permissible current rating in open air: 328 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G95 mm2 NEW

Nexans ref. 10559953

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Outer Diameter: 41.3 mm
  • Approximate weight: 4710 kg/km
  • Permissible current rating in open air: 298 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G95 mm2

Nexans ref. 10559964

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 95 mm²
  • Outer Diameter: 46 mm
  • Approximate weight: 5796 kg/km
  • Permissible current rating in open air: 298 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x120 mm2 NEW

Nexans ref. 10559906

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 120 mm²
  • Outer Diameter: 19.8 mm
  • Approximate weight: 1233 kg/km
  • Permissible current rating in open air: 383 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G120 mm2 NEW

Nexans ref. 10559926

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Outer Diameter: 46.6 mm
  • Approximate weight: 5777 kg/km
  • Permissible current rating in open air: 346 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G120 mm2 NEW

Nexans ref. 10559927

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 120 mm²
  • Outer Diameter: 51.5 mm
  • Approximate weight: 7085 kg/km
  • Permissible current rating in open air: 346 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x150 mm2 NEW

Nexans ref. 10559904

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 150 mm²
  • Outer Diameter: 21.8 mm
  • Approximate weight: 1524 kg/km
  • Permissible current rating in open air: 444 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G150 mm2 NEW

Nexans ref. 10559903

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Outer Diameter: 50.6 mm
  • Approximate weight: 7152 kg/km
  • Permissible current rating in open air: 399 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G150 mm2 NEW

Nexans ref. 10559922

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 150 mm²
  • Outer Diameter: 56.9 mm
  • Approximate weight: 8829 kg/km
  • Permissible current rating in open air: 399 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x185 mm2 NEW

Nexans ref. 10559905

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 185 mm²
  • Outer Diameter: 23.6 mm
  • Approximate weight: 1940 kg/km
  • Permissible current rating in open air: 510 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G185 mm2 NEW

Nexans ref. 10559932

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Outer Diameter: 56.1 mm
  • Approximate weight: 9015 kg/km
  • Permissible current rating in open air: 456 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 5G185 mm2 NEW

Nexans ref. 10559933

  • Packaging: Cut to length (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 185 mm²
  • Outer Diameter: 62.3 mm
  • Approximate weight: 11080 kg/km
  • Permissible current rating in open air: 456 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x240 mm2 NEW

Nexans ref. 10559912

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 240 mm²
  • Outer Diameter: 27.7 mm
  • Approximate weight: 2498 kg/km
  • Permissible current rating in open air: 607 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G240 mm2 NEW

Nexans ref. 10559936

  • Packaging: Cut to length (m)
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Outer Diameter: 65.6 mm
  • Approximate weight: 11540 kg/km
  • Permissible current rating in open air: 538 A



YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 1x300 mm2 NEW

Nexans ref. 10559911

  • Packaging: Cut to length (m)
  • Core identification: Natural
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 300 mm²
  • Outer Diameter: 28.6 mm
  • Approximate weight: 3090 kg/km
  • Permissible current rating in open air: 703 A



Description

Description

Standards

  • Product
    HD 604.4D; IEC 60228; IEC 60502
  • Test
    KEMA 42 C-1-4-D

Applications

YMvK ss Dca ULTRAFLEX® is a power cable according to fire classification Dca-s2,d2,a3, for usage in low voltage installations up to 0.6/1 kV in housing, residential and similar installations with a medium fire hazard level.  YMvK ss Dca ULTRAFLEX®  is suitable for fixed installation in sight, with clamps or saddles. Use of this cable in special trays and ducts is allowed. This cable has a reduced propagation of fire in cable bunches..

Design

  1. Conductor
    Bare copper
    Highly flexible, class 2 (Conductor construction according to IEC 60228 class 5, conductor resistance according to class 2)
  2. Insulation: XLPE
  3. Inner covering filling compound or filler compound
  4. Outer sheath: PVC
    Colour: grey
    UV resistance: Yes

Performance class

Declaration of Performance

Reaction to fire: Dca-s2,d2,a3

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Highly flexible, class 2
Conductor shape
Round, multi stranded
Insulation
XLPE (chemical)
Protection
Filler
Outer sheath
PVC
Sheath colour
Grey
Lead free
Yes

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Minimum installation temperature
0 °C
Operating temperature, range
-20 ... 80 °C
Max. conductor temperature in service
90 °C
Bending factor when laying
8 (xD)
Field of application
Fixed installations
U.V resistance
EN 50289-4-17 method A, for 720h

Resources

Resources

Current capacity table PR three phase multicore NL

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu
1.5 16.5 19.5 21.0 22.0 23.0 23.0
2.5 22.0 26.0 28.0 30.0 30.0 32.0
4.0 30.0 35.0 36.0 40.0 39.0 42.0
6.0 38.0 44.0 52.0 44.0 49.0 54.0
10.0 51.0 60.0 71.0 58.0 65.0 75.0
16.0 68.0 80.0 75.0 96.0 84.0 100.0
25.0 89.0 105.0 96.0 119.0 107.0 127.0
35.0 109.0 128.0 115.0 147.0 129.0 158.0
50.0 130.0 154.0 179.0 135.0 153.0 192.0
70.0 164.0 194.0 167.0 229.0 188.0 246.0
95.0 197.0 233.0 278.0 197.0 226.0 298.0
120.0 227.0 268.0 322.0 223.0 257.0 346.0
150.0 259.0 300.0 371.0 251.0 287.0 399.0
185.0 295.0 340.0 424.0 281.0 324.0 456.0
240.0 346.0 398.0 324.0 500.0 375.0 538.0
300.0 396.0 455.0 365.0 576.0 419.0 621.0
A2 Multi-core cable in conduit in a thermally insulated wall
B2 Multi-core cable in conduit on a wooden wall
D1 Multi-core cable in ducts in the ground
C Single-core or multi-core cable on a wooden wall
D2 Multi-core cables designed to be buried directly in the ground
E Multi-core cable in free air

Current capacity table PR single phase multicore

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu
1.5 18.5 22.0 25.0 24.0 27.0 26.0
2.5 25.0 30.0 33.0 33.0 35.0 36.0
4.0 33.0 40.0 43.0 45.0 46.0 49.0
6.0 42.0 51.0 53.0 58.0 58.0 53.0
10.0 57.0 69.0 80.0 71.0 77.0 86.0
16.0 76.0 91.0 91.0 107.0 100.0 115.0
25.0 99.0 119.0 116.0 138.0 129.0 149.0
35.0 121.0 146.0 139.0 171.0 155.0 185.0
50.0 145.0 175.0 164.0 209.0 183.0 225.0
70.0 183.0 221.0 203.0 269.0 225.0 286.0
95.0 220.0 265.0 328.0 239.0 270.0 352.0
120.0 253.0 305.0 271.0 382.0 306.0 410.0
150.0 290.0 334.0 441.0 306.0 343.0 473.0
185.0 329.0 384.0 506.0 343.0 387.0 542.0
240.0 386.0 459.0 599.0 395.0 448.0 641.0
300.0 442.0 532.0 446.0 693.0 502.0 741.0
A2 Multi-core cable in conduit in a thermally insulated wall
B2 Multi-core cable in conduit on a wooden wall
C Single-core or multi-core cable on a wooden wall
D1 Multi-core cable in ducts in the ground
D2 Multi-core cables designed to be buried directly in the ground
E Multi-core cable in free air

Current capacity table PR single phase single core

Conductor cross-section
mm² Cu Cu Cu Cu
1.5 19.0 23.0 24.0 0.0
2.5 26.0 31.0 33.0 0.0
4.0 35.0 42.0 45.0 0.0
6.0 45.0 54.0 58.0 0.0
10.0 61.0 75.0 80.0 0.0
16.0 81.0 100.0 107.0 0.0
25.0 106.0 133.0 138.0 161.0
35.0 131.0 164.0 171.0 200.0
50.0 158.0 198.0 209.0 242.0
70.0 200.0 253.0 269.0 310.0
95.0 241.0 306.0 328.0 377.0
120.0 278.0 354.0 382.0 437.0
150.0 318.0 393.0 441.0 504.0
185.0 362.0 449.0 506.0 575.0
240.0 424.0 528.0 599.0 679.0
300.0 486.0 603.0 693.0 783.0
400.0 0.0 0.0 0.0 940.0
500.0 0.0 0.0 0.0 1083.0
630.0 0.0 0.0 0.0 1254.0
A1 Insulated conductors in conduit in a thermally insulated wall
B1 Insulated conductors in conduit on a wooden wall
C Single-core or multi-core cable on a wooden wall
F Single-core flat cables, touching in free air

Current capacity table PR three phase single core

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu
1.5 17.0 20.0 21.0 22.0 23.0 0.0 0.0
2.5 23.0 28.0 28.0 30.0 30.0 0.0 0.0
4.0 31.0 37.0 40.0 36.0 39.0 0.0 0.0
6.0 40.0 48.0 52.0 44.0 49.0 0.0 0.0
10.0 54.0 66.0 71.0 58.0 65.0 0.0 0.0
16.0 73.0 88.0 96.0 75.0 84.0 0.0 0.0
25.0 95.0 117.0 119.0 96.0 107.0 135.0 141.0
35.0 117.0 144.0 115.0 147.0 129.0 169.0 176.0
50.0 141.0 175.0 179.0 135.0 153.0 207.0 216.0
70.0 179.0 222.0 167.0 229.0 188.0 268.0 279.0
95.0 216.0 269.0 197.0 278.0 226.0 328.0 342.0
120.0 249.0 312.0 322.0 223.0 257.0 383.0 400.0
150.0 285.0 342.0 371.0 251.0 287.0 444.0 464.0
185.0 324.0 384.0 424.0 281.0 324.0 510.0 533.0
240.0 380.0 450.0 500.0 324.0 375.0 607.0 634.0
300.0 435.0 514.0 576.0 365.0 419.0 703.0 736.0
400.0 0.0 0.0 0.0 0.0 0.0 823.0 868.0
500.0 0.0 0.0 0.0 0.0 0.0 946.0 998.0
630.0 0.0 0.0 0.0 0.0 0.0 1088.0 1151.0
A1 Insulated conductors in conduit in a thermally insulated wall
B1 Insulated conductors in conduit on a wooden wall
D1 Single or Multi-core cable in ducts in the ground
C Single-core or multi-core cable on a wooden wall
D2 Single or Multi-core cables designed to be buried directly in the ground
F Single-core trefoil cables, touching in free air
F Single-core flat cables, touching in free air

Selling & delivery Information

Marking

YMvK ss Dca-s2,d2,a3
n (x or G) s mm²
NEXANS BENELUX
KEMA KEUR
Meter Marking

n = no. of conductors

s = cross section in mm²

x = without green/yellow

G = with green/yellow





Find a Distributor

Waiting…

No items found

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
