YMvK Dca-s2 ULTRAFLEX 0.6/1 kV 4G120 mm2

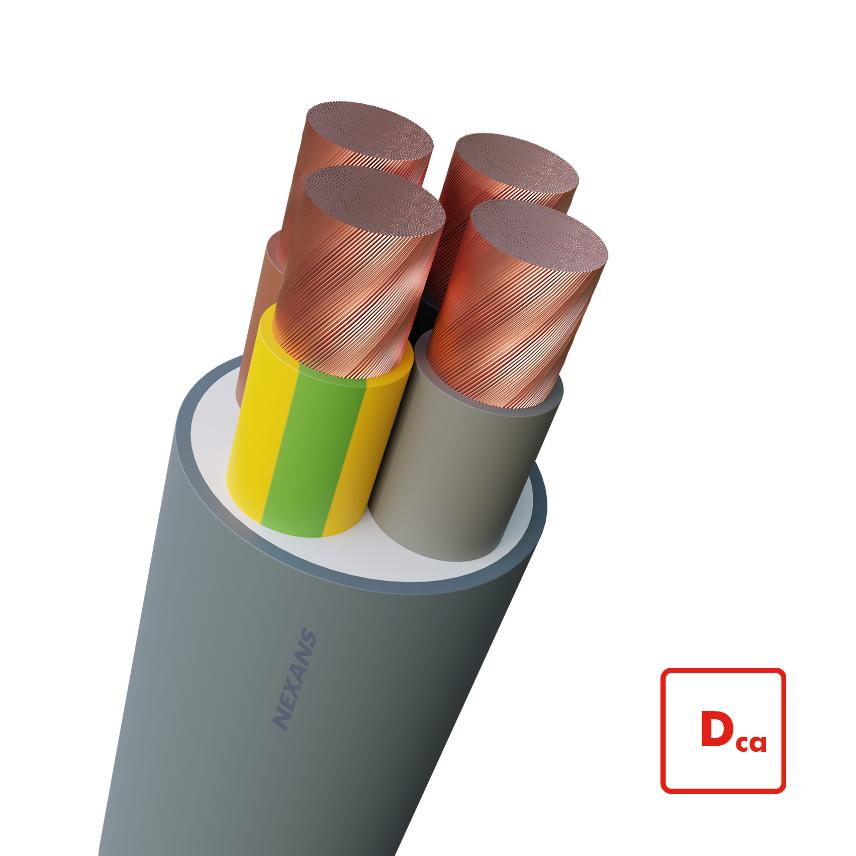

YMvK ss Dca ULTRAFLEX® is a power cable according to fire classification Dca-s2,d2,a3, for usage in low voltage installations up to 0.6/1 kV in housing, residential and similar installations with a medium fire hazard level

Nexans ref. : 10559926
EAN : 5413404322077

Download all documents [Find dealer]

Description

Standards

Product

HD 604.4D; IEC 60228; IEC 60502
Test

KEMA 42 C-1-4-D

Applications

YMvK ss Dca ULTRAFLEX® is a power cable according to fire classification Dca-s2,d2,a3, for usage in low voltage installations up to 0.6/1 kV in housing, residential and similar installations with a medium fire hazard level. YMvK ss Dca ULTRAFLEX® is suitable for fixed installation in sight, with clamps or saddles. Use of this cable in special trays and ducts is allowed. This cable has a reduced propagation of fire in cable bunches..

Design

Conductor
Bare copper
Highly flexible, class 2 (Conductor construction according to IEC 60228 class 5, conductor resistance according to class 2)
Insulation: XLPE
Inner covering filling compound or filler compound
Outer sheath: PVC
Colour: grey
UV resistance: Yes

Performance class

Declaration of Performance

Reaction to fire: Dca-s2,d2,a3

Characteristics

Construction characteristics

Conductor material

Copper

Conductor flexibility

Highly flexible, class 2

Conductor shape

Round, multi stranded

Insulation

XLPE (chemical)

Protection

Filler

Outer sheath

PVC

Sheath colour

Grey

Lead free

Yes

Core identification

Brown, black, grey, green / yellow

With Green/Yellow core

Yes

Dimensional characteristics

Number of cores

Conductor cross-section

120 mm²

Outer Diameter

46.6 mm

Approximate weight

5777 kg/km

Neutral conductor section (when smaller)

- mm²

Electrical characteristics

Max. DC resistance of the conductor at 20°C

0.153 Ohm/km

Permissible current rating in open air

346 A

Rated Voltage Uo/U (Um)

0,6/1 kV

Mechanical characteristics

Mechanical resistance to impacts

Good

Usage characteristics

Minimum installation temperature

0 °C

Operating temperature, range

-20 ... 80 °C

Max. conductor temperature in service

90 °C

Bending factor when laying

8 (xD)

Field of application

Fixed installations

U.V resistance

EN 50289-4-17 method A, for 720h

Resources

Current capacity table PR three phase multicore NL

Conductor cross-section
mm²	Cu	Cu	Cu	Cu	Cu	Cu
120.0	227.0	268.0	322.0	223.0	257.0	346.0

A2 Multi-core cable in conduit in a thermally insulated wall

B2 Multi-core cable in conduit on a wooden wall

D1 Multi-core cable in ducts in the ground

C Single-core or multi-core cable on a wooden wall

D2 Multi-core cables designed to be buried directly in the ground

E Multi-core cable in free air

Current capacity table PR single phase multicore

Conductor cross-section
mm²	Cu	Cu	Cu	Cu	Cu	Cu
120.0	253.0	305.0	271.0	382.0	306.0	410.0

A2 Multi-core cable in conduit in a thermally insulated wall

B2 Multi-core cable in conduit on a wooden wall

C Single-core or multi-core cable on a wooden wall

D1 Multi-core cable in ducts in the ground

D2 Multi-core cables designed to be buried directly in the ground

E Multi-core cable in free air

Current capacity table PR single phase single core

Conductor cross-section
mm²	Cu	Cu	Cu	Cu
120.0	278.0	354.0	382.0	437.0

A1 Insulated conductors in conduit in a thermally insulated wall

B1 Insulated conductors in conduit on a wooden wall

C Single-core or multi-core cable on a wooden wall

F Single-core flat cables, touching in free air

Current capacity table PR three phase single core

Conductor cross-section
mm²	Cu	Cu	Cu	Cu	Cu	Cu	Cu
120.0	249.0	312.0	322.0	223.0	257.0	383.0	400.0

A1 Insulated conductors in conduit in a thermally insulated wall

B1 Insulated conductors in conduit on a wooden wall

D1 Single or Multi-core cable in ducts in the ground

C Single-core or multi-core cable on a wooden wall

D2 Single or Multi-core cables designed to be buried directly in the ground

F Single-core trefoil cables, touching in free air

F Single-core flat cables, touching in free air

Selling & delivery Information

Marking

YMvK ss Dca-s2,d2,a3
n (x or G) s mm²
NEXANS BENELUX
KEMA KEUR
Meter Marking

n = no. of conductors

s = cross section in mm²

x = without green/yellow

G = with green/yellow

Declaration of Performance

Declaration of Performance n� : 1000904-BEDO
Certification Date : 12/1/23
AVCP (Assessment and Verification of Constancy of Performance) : System 3
Notified body : NB 2659
Declared performance : D_ca-s2,d2,a3
