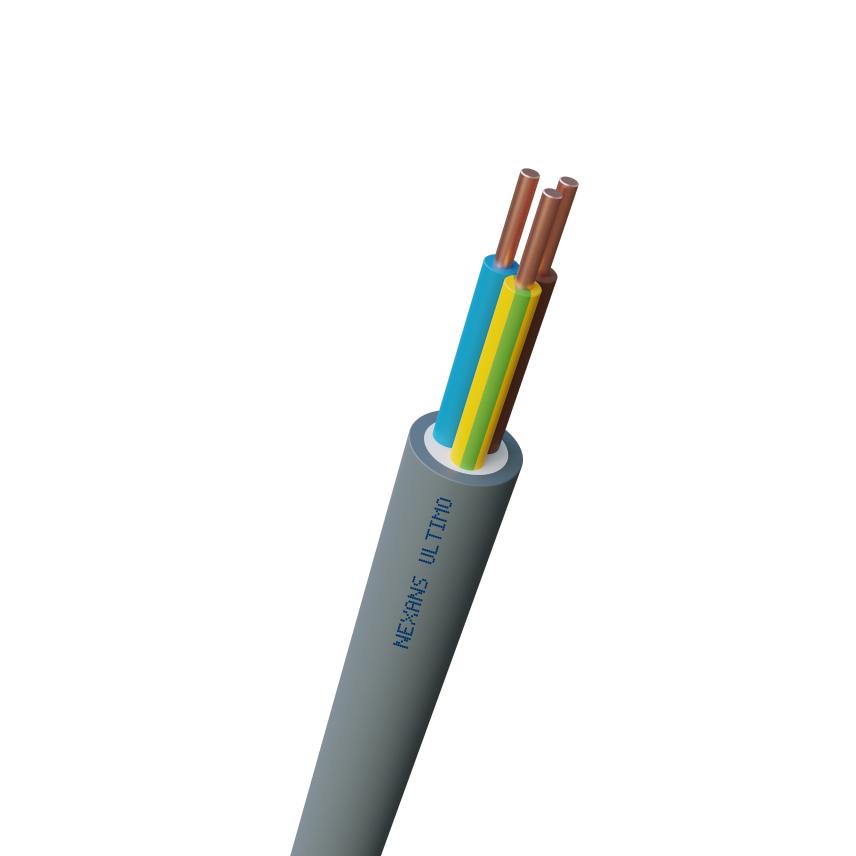

YMvK Dca-s2 0.6/1 kV
YMvK Dca-s2 0.6/1 kV
Power cable according to Dutch standard with fire classification Dca-s2,d2,a3 for usage in low voltage installations up to 0.6/1 kV in housing, residential and simular installation with a medium fire hazard level
Read moreYMvK Dca-s2 0.6/1 kV Easy Strippable 2x1.5 MM2 NEW
Nexans ref. 10559894
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Core identification: Blue, brown
- Conductor shape: Round solid
- Conductor flexibility: Solid class 1
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Approximate weight: 153 kg/km
- Nominal outer diameter: 10.4 mm
- Loop resistance, max. at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 26 A
YMvK Dca-s2 0.6/1 kV Easy Strippable 2x1.5 MM2 (R100) NEW
Nexans ref. 10559791
- Packaging: Ring (100m)
- With Green/Yellow core: No
- Core identification: Blue, brown
- Conductor shape: Round solid
- Conductor flexibility: Solid class 1
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Approximate weight: 153 kg/km
- Nominal outer diameter: 10.4 mm
- Loop resistance, max. at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 26 A
YMvK Dca-s2 0.6/1 kV Easy Strippable 2x1.5 MM2 (B500) NEW
Nexans ref. 10559792
- Packaging: Drum (500m)
- With Green/Yellow core: No
- Core identification: Blue, brown
- Conductor shape: Round solid
- Conductor flexibility: Solid class 1
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Approximate weight: 153 kg/km
- Nominal outer diameter: 10.4 mm
- Loop resistance, max. at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 26 A
YMvK Dca-s2 0.6/1 kV Easy Strippable 3G1.5 MM2 NEW
Nexans ref. 10559892
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Core identification: Blue, brown, green/yellow
- Conductor shape: Round solid
- Conductor flexibility: Solid class 1
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Approximate weight: 171 kg/km
- Nominal outer diameter: 10.8 mm
- Loop resistance, max. at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 23 A
YMvK Dca-s2 0.6/1 kV Easy Strippable 3G1.5 MM2 (R100) NEW
Nexans ref. 10559809
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Core identification: Blue, brown, green/yellow
- Conductor shape: Round solid
- Conductor flexibility: Solid class 1
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Approximate weight: 171 kg/km
- Nominal outer diameter: 10.8 mm
- Loop resistance, max. at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 23 A
Description
Description
Standards
-
ProductHD 604.4D; IEC 60228
-
TestKEMA 42 C-1-4-D
Applications
YMvK Dca 0.6/1 kV is a power cable for general use in construction works subject to performance requirements on reaction to fire. YMvK Dca 0.6/1 kV is suitable for application in low voltage installations up to 0.6/1 kV, according to NEN 1010. It meets the requirements according to fire classification Dca-s2,d2,a3 for usage in buildings and civil engineering works with a medium fire hazard level (NEN 8012).
Thanks to its improved flexibility YMvK Dca-s2 FLEX 0.6/1 kV is easier to install then the non-flexible version. YMvK Dca FLEX 0.6.1 kV is available from 35 mm2.
YMvK Dca-s2 0.6/1 kV Easy Strippable has an improved design with an easier to strip cable sheaths. With Easy Strippable you can remove the sheath in a single smooth motion over a length of up to 100 cm.
Design
- Conductor:
Conductors untill 10 mm2: Bare copper, solid, class 1
Conductors from 10 mm2: Bare copper, stranded, class 2 - Insulation: XLPE
- Inner covering: filling compound
- Outer sheath: PVC
Colour: Grey
UV resistance: Yes
Core identification
- 1 core : black
- 2 cores : brown - blue
- 3G cores: brown - blue - green/yellow
- 3x cores : black - brown - grey
- 4 cores : brown - black - grey - green/yellow
- 5 cores : brown - blue - black - grey - green/yellow
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Sheath colour
Grey
Conductor material
Bare copper
Insulation
XLPE (chemical)
Protection
Filler
Outer sheath
PVC
Lead free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Field of application
Standard
Bending factor when laying
10 (xD)
One single bending at each end minimum
8 (xD)
Minimum installation temperature
0 °C
Operating temperature, range
-20 ... 80 °C
Max. conductor temperature in service
90 °C
U.V resistance
EN 50289-4-17 method A, for 720h
Resources
Resources
Current capacity table PR single phase single core
| Conductor cross-section |
|
|
|
|
|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu |
Conductor cross-section 1.5 |
|
|
|
|
Conductor cross-section 2.5 |
|
|
|
|
Conductor cross-section 4.0 |
|
|
|
|
Conductor cross-section 6.0 |
|
|
|
|
Conductor cross-section 10.0 |
|
|
|
|
Conductor cross-section 16.0 |
|
|
|
|
Conductor cross-section 25.0 |
|
|
|
|
Conductor cross-section 35.0 |
|
|
|
|
Conductor cross-section 50.0 |
|
|
|
|
Conductor cross-section 70.0 |
|
|
|
|
Conductor cross-section 95.0 |
|
|
|
|
Conductor cross-section 120.0 |
|
|
|
|
Conductor cross-section 150.0 |
|
|
|
|
Conductor cross-section 185.0 |
|
|
|
|
Conductor cross-section 240.0 |
|
|
|
|
Conductor cross-section 300.0 |
|
|
|
|
Conductor cross-section 400.0 |
|
|
|
|
Conductor cross-section 500.0 |
|
|
|
|
Conductor cross-section 630.0 |
|
|
|
|
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
B1 Insulated conductors in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
F Single-core flat cables, touching in free air |
Current capacity table PR single phase multicore
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
Conductor cross-section 1.5 |
|
|
|
|
|
|
Conductor cross-section 2.5 |
|
|
|
|
|
|
Conductor cross-section 4.0 |
|
|
|
|
|
|
Conductor cross-section 6.0 |
|
|
|
|
|
|
Conductor cross-section 10.0 |
|
|
|
|
|
|
Conductor cross-section 16.0 |
|
|
|
|
|
|
Conductor cross-section 25.0 |
|
|
|
|
|
|
Conductor cross-section 35.0 |
|
|
|
|
|
|
Conductor cross-section 50.0 |
|
|
|
|
|
|
Conductor cross-section 70.0 |
|
|
|
|
|
|
Conductor cross-section 95.0 |
|
|
|
|
|
|
Conductor cross-section 120.0 |
|
|
|
|
|
|
Conductor cross-section 150.0 |
|
|
|
|
|
|
Conductor cross-section 185.0 |
|
|
|
|
|
|
Conductor cross-section 240.0 |
|
|
|
|
|
|
Conductor cross-section 300.0 |
|
|
|
|
|
|
|
A2 Multi-core cable in conduit in a thermally insulated wall |
|
B2 Multi-core cable in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
D1 Multi-core cable in ducts in the ground |
|
D2 Multi-core cables designed to be buried directly in the ground |
|
E Multi-core cable in free air |
Current capacity table PR three phase single core
| Conductor cross-section |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
Conductor cross-section 1.5 |
|
|
|
|
|
|
|
Conductor cross-section 2.5 |
|
|
|
|
|
|
|
Conductor cross-section 4.0 |
|
|
|
|
|
|
|
Conductor cross-section 6.0 |
|
|
|
|
|
|
|
Conductor cross-section 10.0 |
|
|
|
|
|
|
|
Conductor cross-section 16.0 |
|
|
|
|
|
|
|
Conductor cross-section 25.0 |
|
|
|
|
|
|
|
Conductor cross-section 35.0 |
|
|
|
|
|
|
|
Conductor cross-section 50.0 |
|
|
|
|
|
|
|
Conductor cross-section 70.0 |
|
|
|
|
|
|
|
Conductor cross-section 95.0 |
|
|
|
|
|
|
|
Conductor cross-section 120.0 |
|
|
|
|
|
|
|
Conductor cross-section 150.0 |
|
|
|
|
|
|
|
Conductor cross-section 185.0 |
|
|
|
|
|
|
|
Conductor cross-section 240.0 |
|
|
|
|
|
|
|
Conductor cross-section 300.0 |
|
|
|
|
|
|
|
Conductor cross-section 400.0 |
|
|
|
|
|
|
|
Conductor cross-section 500.0 |
|
|
|
|
|
|
|
Conductor cross-section 630.0 |
|
|
|
|
|
|
|
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
B1 Insulated conductors in conduit on a wooden wall |
|
D1 Single or Multi-core cable in ducts in the ground |
|
C Single-core or multi-core cable on a wooden wall |
|
D2 Single or Multi-core cables designed to be buried directly in the ground |
|
F Single-core trefoil cables, touching in free air |
|
F Single-core flat cables, touching in free air |
Current capacity table PR three phase multicore NL
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
Conductor cross-section 1.5 |
|
|
|
|
|
|
Conductor cross-section 2.5 |
|
|
|
|
|
|
Conductor cross-section 4.0 |
|
|
|
|
|
|
Conductor cross-section 6.0 |
|
|
|
|
|
|
Conductor cross-section 10.0 |
|
|
|
|
|
|
Conductor cross-section 16.0 |
|
|
|
|
|
|
Conductor cross-section 25.0 |
|
|
|
|
|
|
Conductor cross-section 35.0 |
|
|
|
|
|
|
Conductor cross-section 50.0 |
|
|
|
|
|
|
Conductor cross-section 70.0 |
|
|
|
|
|
|
Conductor cross-section 95.0 |
|
|
|
|
|
|
Conductor cross-section 120.0 |
|
|
|
|
|
|
Conductor cross-section 150.0 |
|
|
|
|
|
|
Conductor cross-section 185.0 |
|
|
|
|
|
|
Conductor cross-section 240.0 |
|
|
|
|
|
|
Conductor cross-section 300.0 |
|
|
|
|
|
|
|
A2 Multi-core cable in conduit in a thermally insulated wall |
|
B2 Multi-core cable in conduit on a wooden wall |
|
D1 Multi-core cable in ducts in the ground |
|
C Single-core or multi-core cable on a wooden wall |
|
D2 Multi-core cables designed to be buried directly in the ground |
|
E Multi-core cable in free air |
Selling & delivery Information
Marking
YMvK Dca (FLEX) n (x or G) s mm²
NEXANS BENELUX
KEMA KEUR
Meter Marking
