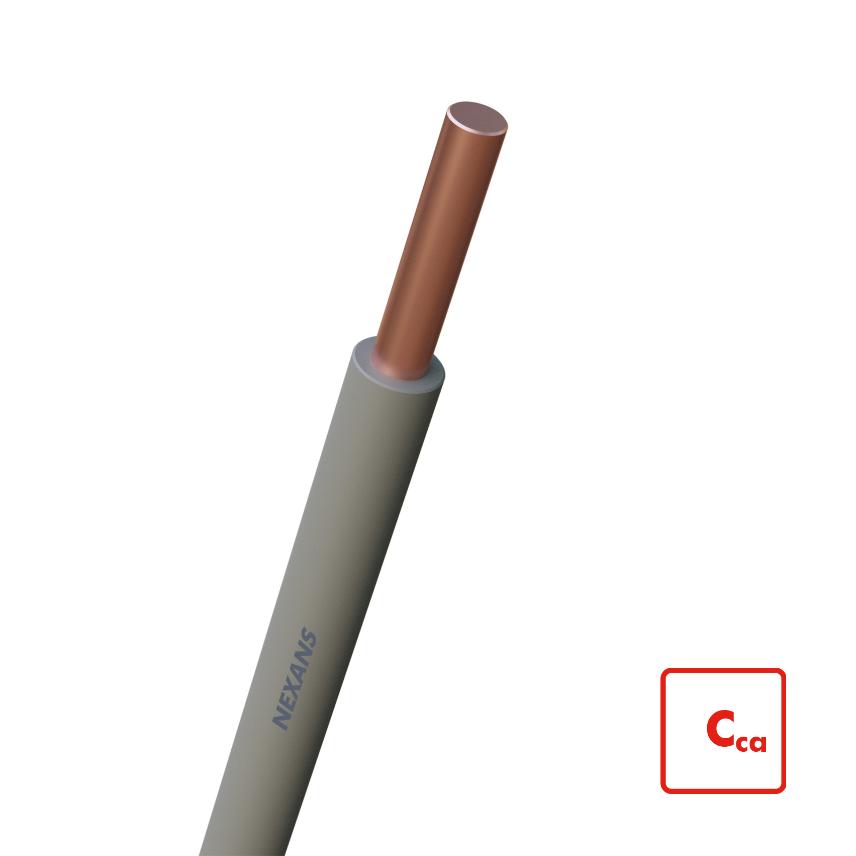

ALSECURE® H07Z1-U Cca 1x4 GREY TYPE 2
ALSECURE® H07Z1-U Cca 1x4 GREY TYPE 2
Nexans H07Z1-U Cca Type 2 and Nexans H07Z1-R Cca Type 2 are halogen-free and fire-retardant installation wire for 450 / 750V AC or 1kV DC. H07Z1-U has a solid class 1 core, H07Z1-R has a stranded class 2 core. Nexans H07Z1-U/R Cca Type 2 is intended for protected fixed domestic and industrial installations. Installation may be in a tube or in closed gutters embedded in the wall, in the floor or surface mounted.
Nexans H07Z1-U/R Cca Type 2 has fire reaction class Cca-s1,d2,a1 according to EN 50575 and may be installed in bundle or side by side and in areas with increased fire risk according to AREI/RGIE. The wire is also suited for areas where AREI/RGIE imposes s1 a1.
- Nexans ref. : 10559560
- EAN : 5413404320202
Description
Description
Standards
-
ProductEN 50525-3-31
Application
- Halogenfree insulated conductors for fixed installations
- For domestic and industrial applications as well as for panel wiring
Design
- Copper core, solid (U) or stranded (R)
- Halogen free and fire retardant insulating sheath
Installation
- In industries
- In houses
- Open-air laying : with protection
- Ground laying : with protection
Note only for Nexans H07Z1-R Cca Type 2
UV resistance according to EN 50289-4-17 Method A (test duration 720h) establishes ALSECURE H07Z1-R Cca Type 2 is particularly fitted for our Belgian climate. Nexans H07Z1-R Cca Type 2 can thus be exposed to direct sunlight. This UV resistance is valid for the Nexans H07Z1-R Cca Type 2 accompanied by the Declaration of Performance (DoP) n°1000277-BEDO.
More on UV resistance
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
- Other colours available upon request
Declaration of Performance
- Declaration of Performance n� : 1000277-BEBU
- Certification Date : 12/1/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 1+
- Notified body : NB 2658
- Declared performance : Cca-s1a,d2,a1
