ALSECURE Z1G-YMz1Kas B2ca FLEX 0.6/1 kV
ALSECURE Z1G-YMz1Kas B2ca FLEX 0.6/1 kV
Armoured halogen free power cable according to fire classification B2ca-s1,d1,a1 for connection in low voltage installations up to 0.6/1 kV. Z1G-YMz1Kas B2ca Flex is provided with conductors with increased bendability.
Read moreALSECURE Z1G-YMz1Kas B2ca Flex 3x 35 mm2
Nexans ref. 10514107
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Cross-section of the protection cores: 16 mm²
- Nominal outer diameter: 27.0 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x 35 mm2
Nexans ref. 10513652
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Cross-section of the protection cores: 16 mm²
- Nominal outer diameter: 29.5 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 3x 50 mm2
Nexans ref. 10514108
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Cross-section of the protection cores: 25 mm²
- Nominal outer diameter: 29.5 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x 50 mm2
Nexans ref. 10513622
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Cross-section of the protection cores: 25 mm²
- Nominal outer diameter: 33.0 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 3x 70 mm2
Nexans ref. 10514109
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Cross-section of the protection cores: 35 mm²
- Nominal outer diameter: 33.0 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x 70 mm2
Nexans ref. 10513653
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Cross-section of the protection cores: 35 mm²
- Nominal outer diameter: 37.2 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 3x 95 mm2
Nexans ref. 10514002
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Cross-section of the protection cores: 50 mm²
- Nominal outer diameter: 35.5 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x 95 mm2
Nexans ref. 10513623
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Cross-section of the protection cores: 50 mm²
- Nominal outer diameter: 40.2 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 3x120 mm2
Nexans ref. 10514120
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 120 mm²
- Cross-section of the protection cores: 60 mm²
- Nominal outer diameter: 38.7 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x120 mm2
Nexans ref. 10513624
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Cross-section of the protection cores: 60 mm²
- Nominal outer diameter: 44.2 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 3x150 mm2
Nexans ref. 10514006
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 150 mm²
- Cross-section of the protection cores: 75 mm²
- Nominal outer diameter: 43.1 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x150 mm2
Nexans ref. 10514016
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Cross-section of the protection cores: 75 mm²
- Nominal outer diameter: 48.9 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 3x185 mm2
Nexans ref. 10514121
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 185 mm²
- Cross-section of the protection cores: 95 mm²
- Nominal outer diameter: 47.7 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x185 mm2
Nexans ref. 10514018
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Cross-section of the protection cores: 95 mm²
- Nominal outer diameter: 55.1 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 3x240 mm2
Nexans ref. 10541608
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 240 mm²
- Cross-section of the protection cores: 120 mm²
- Nominal outer diameter: 53.8 mm
ALSECURE Z1G-YMz1Kas B2ca Flex 4x240 mm2
Nexans ref. 10545274
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Cross-section of the protection cores: 120 mm²
- Nominal outer diameter: 61.2 mm
Description
Description
Standards
-
InternationalHD 604 S1 part 5/sect. C; IEC 60228
Applications
ALSECURE Z1G-YMz1Kas B2ca is an armoured halogen free power cable according to fire classification B2ca-s1,d1,a1 for use in low voltage installations up to 0.6/1 kV in buildings and civil engineering works with a very high fire hazard level (NEN 8012). ALSECURE Z1G-YMz1Kas B2ca is suitable for direct burial and is advised if protection against mechanical damage and EMI is demanded. This cable has reduced propagation of fire in cable bundles.

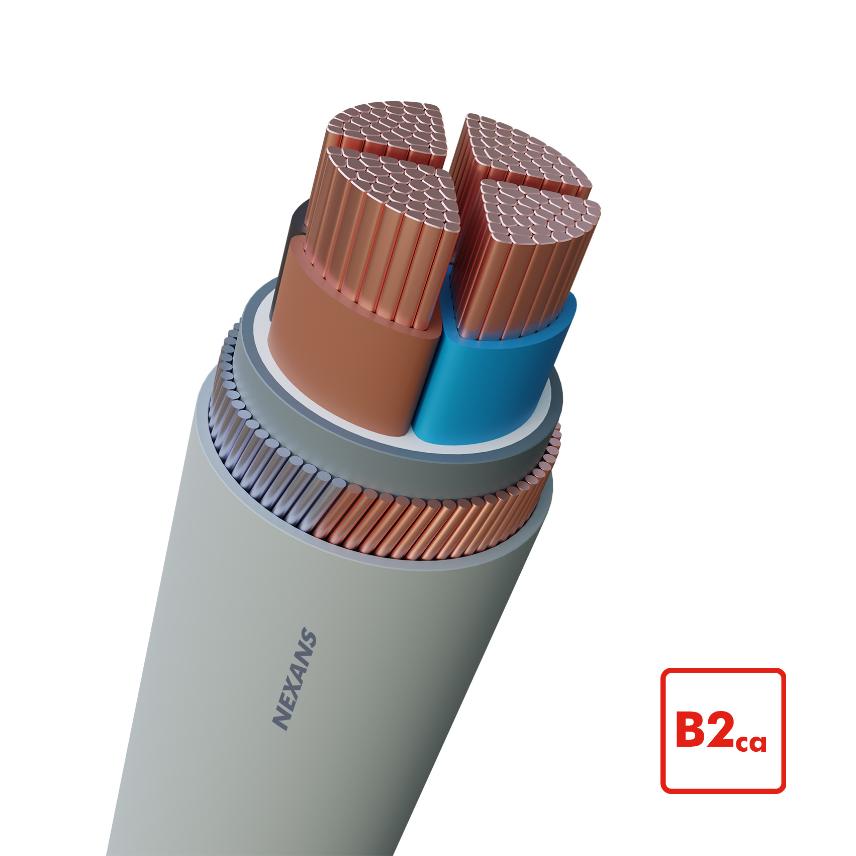

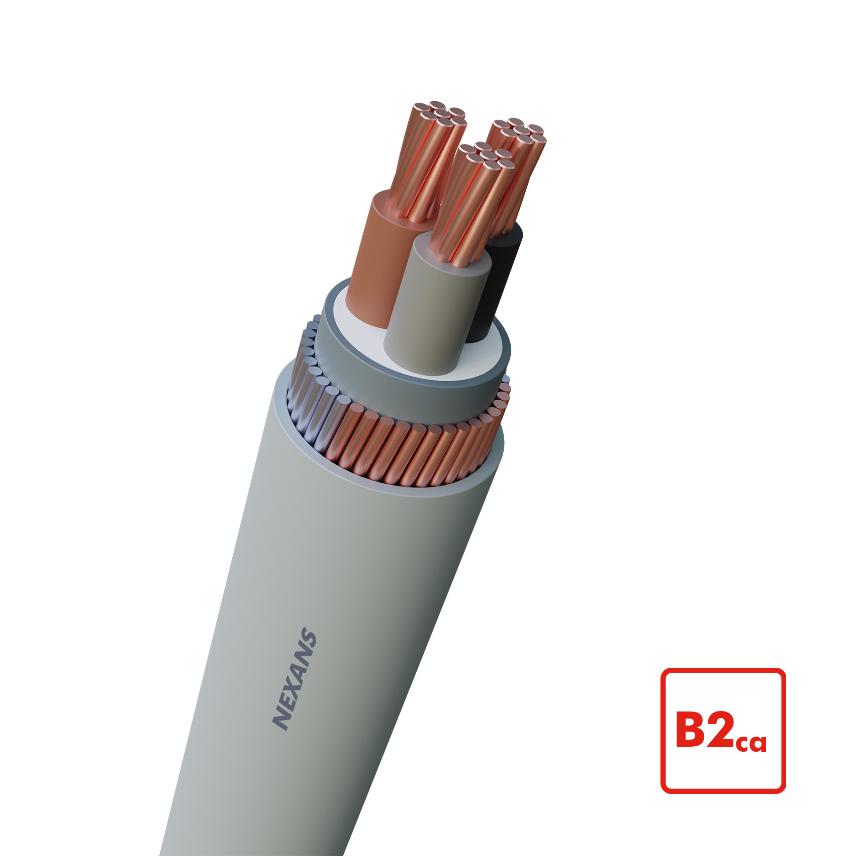

Design
- Conductor: Bare copper, stranded, class 2
- Insulation: XLPE
- Inner covering: Halogen free compound or foil for sector shaped types
- Armour: Galvanized steel wires and bare copper wire or Flat steel wires and flat bare copper wires covered with an open counter spiral of galvanized steels tape
- Outer sheath: Halogen free compound
Colour: grey
UV resistance: Yes
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Current capacity table PR three phase single core
Conductor cross-section |
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
1.5 | 17.0 | 20.0 | 21.0 | 22.0 | 23.0 | 0.0 | 0.0 |
2.5 | 23.0 | 28.0 | 28.0 | 30.0 | 30.0 | 0.0 | 0.0 |
4.0 | 31.0 | 37.0 | 40.0 | 36.0 | 39.0 | 0.0 | 0.0 |
6.0 | 40.0 | 48.0 | 52.0 | 44.0 | 49.0 | 0.0 | 0.0 |
10.0 | 54.0 | 66.0 | 71.0 | 58.0 | 65.0 | 0.0 | 0.0 |
16.0 | 73.0 | 88.0 | 96.0 | 75.0 | 84.0 | 0.0 | 0.0 |
25.0 | 95.0 | 117.0 | 119.0 | 96.0 | 107.0 | 135.0 | 141.0 |
35.0 | 117.0 | 144.0 | 115.0 | 147.0 | 129.0 | 169.0 | 176.0 |
50.0 | 141.0 | 175.0 | 179.0 | 135.0 | 153.0 | 207.0 | 216.0 |
70.0 | 179.0 | 222.0 | 167.0 | 229.0 | 188.0 | 268.0 | 279.0 |
95.0 | 216.0 | 269.0 | 197.0 | 278.0 | 226.0 | 328.0 | 342.0 |
120.0 | 249.0 | 312.0 | 322.0 | 223.0 | 257.0 | 383.0 | 400.0 |
150.0 | 285.0 | 342.0 | 371.0 | 251.0 | 287.0 | 444.0 | 464.0 |
185.0 | 324.0 | 384.0 | 424.0 | 281.0 | 324.0 | 510.0 | 533.0 |
240.0 | 380.0 | 450.0 | 500.0 | 324.0 | 375.0 | 607.0 | 634.0 |
300.0 | 435.0 | 514.0 | 576.0 | 365.0 | 419.0 | 703.0 | 736.0 |
400.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 823.0 | 868.0 |
500.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 946.0 | 998.0 |
630.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1088.0 | 1151.0 |
A1 Insulated conductors in conduit in a thermally insulated wall |
B1 Insulated conductors in conduit on a wooden wall |
D1 Single or Multi-core cable in ducts in the ground |
C Single-core or multi-core cable on a wooden wall |
D2 Single or Multi-core cables designed to be buried directly in the ground |
F Single-core trefoil cables, touching in free air |
F Single-core flat cables, touching in free air |
Current capacity table PR single phase multicore
Conductor cross-section |
|
|
|
|
|
|
---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu |
1.5 | 18.5 | 22.0 | 25.0 | 24.0 | 27.0 | 26.0 |
2.5 | 25.0 | 30.0 | 33.0 | 33.0 | 35.0 | 36.0 |
4.0 | 33.0 | 40.0 | 43.0 | 45.0 | 46.0 | 49.0 |
6.0 | 42.0 | 51.0 | 53.0 | 58.0 | 58.0 | 53.0 |
10.0 | 57.0 | 69.0 | 80.0 | 71.0 | 77.0 | 86.0 |
16.0 | 76.0 | 91.0 | 91.0 | 107.0 | 100.0 | 115.0 |
25.0 | 99.0 | 119.0 | 116.0 | 138.0 | 129.0 | 149.0 |
35.0 | 121.0 | 146.0 | 139.0 | 171.0 | 155.0 | 185.0 |
50.0 | 145.0 | 175.0 | 164.0 | 209.0 | 183.0 | 225.0 |
70.0 | 183.0 | 221.0 | 203.0 | 269.0 | 225.0 | 286.0 |
95.0 | 220.0 | 265.0 | 328.0 | 239.0 | 270.0 | 352.0 |
120.0 | 253.0 | 305.0 | 271.0 | 382.0 | 306.0 | 410.0 |
150.0 | 290.0 | 334.0 | 441.0 | 306.0 | 343.0 | 473.0 |
185.0 | 329.0 | 384.0 | 506.0 | 343.0 | 387.0 | 542.0 |
240.0 | 386.0 | 459.0 | 599.0 | 395.0 | 448.0 | 641.0 |
300.0 | 442.0 | 532.0 | 446.0 | 693.0 | 502.0 | 741.0 |
A2 Multi-core cable in conduit in a thermally insulated wall |
B2 Multi-core cable in conduit on a wooden wall |
C Single-core or multi-core cable on a wooden wall |
D1 Multi-core cable in ducts in the ground |
D2 Multi-core cables designed to be buried directly in the ground |
E Multi-core cable in free air |
Current capacity table PR single phase single core
Conductor cross-section |
|
|
|
|
---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu |
1.5 | 19.0 | 23.0 | 24.0 | 0.0 |
2.5 | 26.0 | 31.0 | 33.0 | 0.0 |
4.0 | 35.0 | 42.0 | 45.0 | 0.0 |
6.0 | 45.0 | 54.0 | 58.0 | 0.0 |
10.0 | 61.0 | 75.0 | 80.0 | 0.0 |
16.0 | 81.0 | 100.0 | 107.0 | 0.0 |
25.0 | 106.0 | 133.0 | 138.0 | 161.0 |
35.0 | 131.0 | 164.0 | 171.0 | 200.0 |
50.0 | 158.0 | 198.0 | 209.0 | 242.0 |
70.0 | 200.0 | 253.0 | 269.0 | 310.0 |
95.0 | 241.0 | 306.0 | 328.0 | 377.0 |
120.0 | 278.0 | 354.0 | 382.0 | 437.0 |
150.0 | 318.0 | 393.0 | 441.0 | 504.0 |
185.0 | 362.0 | 449.0 | 506.0 | 575.0 |
240.0 | 424.0 | 528.0 | 599.0 | 679.0 |
300.0 | 486.0 | 603.0 | 693.0 | 783.0 |
400.0 | 0.0 | 0.0 | 0.0 | 940.0 |
500.0 | 0.0 | 0.0 | 0.0 | 1083.0 |
630.0 | 0.0 | 0.0 | 0.0 | 1254.0 |
A1 Insulated conductors in conduit in a thermally insulated wall |
B1 Insulated conductors in conduit on a wooden wall |
C Single-core or multi-core cable on a wooden wall |
F Single-core flat cables, touching in free air |
Current capacity table PR three phase multicore NL
Conductor cross-section |
|
|
|
|
|
|
---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu |
1.5 | 16.5 | 19.5 | 21.0 | 22.0 | 23.0 | 23.0 |
2.5 | 22.0 | 26.0 | 28.0 | 30.0 | 30.0 | 32.0 |
4.0 | 30.0 | 35.0 | 36.0 | 40.0 | 39.0 | 42.0 |
6.0 | 38.0 | 44.0 | 52.0 | 44.0 | 49.0 | 54.0 |
10.0 | 51.0 | 60.0 | 71.0 | 58.0 | 65.0 | 75.0 |
16.0 | 68.0 | 80.0 | 75.0 | 96.0 | 84.0 | 100.0 |
25.0 | 89.0 | 105.0 | 96.0 | 119.0 | 107.0 | 127.0 |
35.0 | 109.0 | 128.0 | 115.0 | 147.0 | 129.0 | 158.0 |
50.0 | 130.0 | 154.0 | 179.0 | 135.0 | 153.0 | 192.0 |
70.0 | 164.0 | 194.0 | 167.0 | 229.0 | 188.0 | 246.0 |
95.0 | 197.0 | 233.0 | 278.0 | 197.0 | 226.0 | 298.0 |
120.0 | 227.0 | 268.0 | 322.0 | 223.0 | 257.0 | 346.0 |
150.0 | 259.0 | 300.0 | 371.0 | 251.0 | 287.0 | 399.0 |
185.0 | 295.0 | 340.0 | 424.0 | 281.0 | 324.0 | 456.0 |
240.0 | 346.0 | 398.0 | 324.0 | 500.0 | 375.0 | 538.0 |
300.0 | 396.0 | 455.0 | 365.0 | 576.0 | 419.0 | 621.0 |
A2 Multi-core cable in conduit in a thermally insulated wall |
B2 Multi-core cable in conduit on a wooden wall |
D1 Multi-core cable in ducts in the ground |
C Single-core or multi-core cable on a wooden wall |
D2 Multi-core cables designed to be buried directly in the ground |
E Multi-core cable in free air |
Selling & delivery Information
Marking
ALSECURE® Z1G-YMz1Kas B2ca
n x s
NEXANS BENELUX
KEMA KEUR
+Meter Marking
