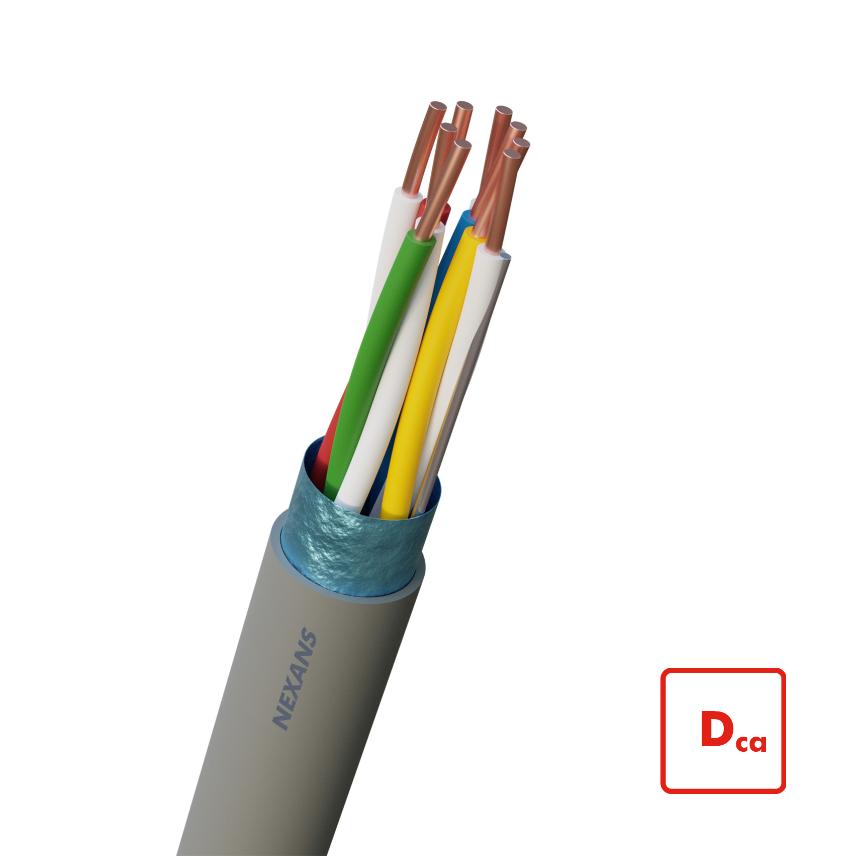

Y(st)Y Dca-s2 6 x 2 x 0,8 mm

Application

Y(st)Y Dca-s2 is a signal cable according to fire classification Dca-s2,d2,a3 for usage in signal applications in low voltage installations with a medium fire hazard level. The metallised foil protects against interference with external electrical fields.

Description

• Conductor: 0.8 mm solid plain copper, class 1
• Insulation: PVC
• Conductors brunched into pairs (except for 1x4x0,8 = 1quad)
  Pairs laid up in concentric layers
• Plastic sperating foil over cable core
• Screening: Metallised foil over drain wire
• Outher sheath: PVC
  Colour: Grey or white

Marking

NEXANS-NL Y(st)Y Dca NxPxS  mm
N = no. of pairs, P = pair or quad, S = section in mm

Core Identification

according NEN 1597 (see technical data, table A)
