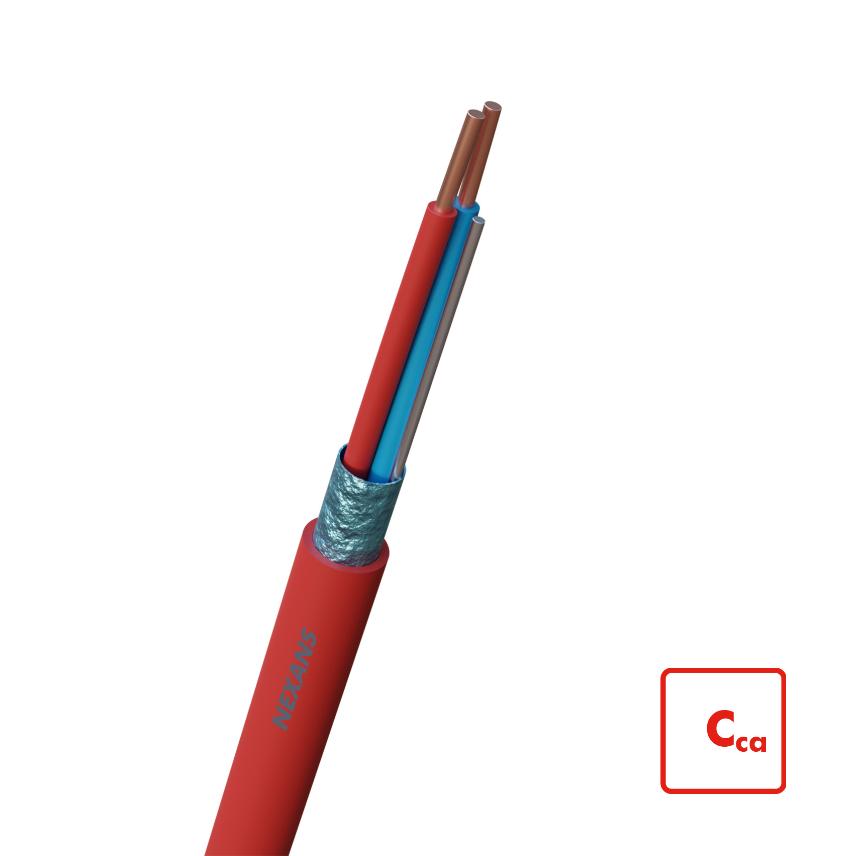

Nexans H(st)H Cca red
Nexans H(st)H Cca red
Screened fire alarm cable according to fire classification Cca-s1,d1,a1 for usage in low voltage installations with a high fire hazard level.
Read moreALSECURE® H(st)H Cca 1x2x0.8 mm red D500
Nexans ref. 10543333
- Packaging: Drum (500m)
- Conductor diameter: 0.8 mm
- Nominal outer diameter: 5.1 mm
- Approximate weight: 37 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 38.2 Ohm/km
ALSECURE® H(st)H Cca 1x2x1 mm2 red
Nexans ref. 10547921 - Country ref. 10539096
- Packaging: Cut to length (m)
- Conductor diameter: 1.0 mm
- Nominal outer diameter: 5.7 mm
- Approximate weight: 50 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 65 Ohm/km
ALSECURE® H(st)H Cca 1x2x1.5 mm2 red
Nexans ref. 10539097
- Packaging: Cut to length (m)
- Conductor diameter: 1.5 mm
- Nominal outer diameter: 6.3 mm
- Approximate weight: 64 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 65 Ohm/km
ALSECURE® H(st)H Cca 1x2x2.5 mm2 red
Nexans ref. 10539100
- Packaging: Cut to length (m)
- Conductor diameter: 2.5 mm
- Nominal outer diameter: 7.1 mm
- Approximate weight: 85 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 65 Ohm/km
ALSECURE® H(st)H Cca 1x2x0.8 mm red
Nexans ref. 10547630 - Country ref. 10539094
- Packaging: Cut to length (m)
- Conductor diameter: 0.8 mm
- Nominal outer diameter: 5.1 mm
- Approximate weight: 37 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 38.2 Ohm/km
ALSECURE® H(st)H Cca 1x4x0.8 mm red
Nexans ref. 10539095
- Packaging: Cut to length (m)
- Conductor diameter: 0.8 mm
- Nominal outer diameter: 5.3 mm
- Approximate weight: 49 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 38.2 Ohm/km
ALSECURE® H(st)H Cca 1x4x0.8 mm red D500
Nexans ref. 10543334
- Packaging: Drum (500m)
- Conductor diameter: 0.8 mm
- Nominal outer diameter: 5.3 mm
- Approximate weight: 49 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 38.2 Ohm/km
Description
Description
Standards
-
TestIEC 60332-1
Application
Nexans H(st)H Cca red is a screened halogon free fire alarm cable according to fire classification Cca-s1,d1,a1 for usage in housing, residential and similar installations with a high fire hazard level. Nexans H(st)H Cca red is designed for fire alarm, measurement, regulation and control applications in low voltage installation. The metallised foil protects against interference with external electrical fields.
Description
- Conductor: Solid plain copper conductor, 0.8 mm or 1,0-2,5 mm2
- Insulation: PE
- Conductors brunched into pairs (except for 1x4x0,8 = 1quad)
- Pairs laid up in concentric layers
- Plastic seperating foil over cable core
- Screening: Metallised foil over drain wire
- Outer sheath: Fire retardant LSZH, red
Core Identification
according NEN 1597 (see technical data, table A)
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Marking: NEXANS-NL H(st)H Cca NxPxS mm (N=no. of pair/quad, P=pair or quad, S=section in mm)
