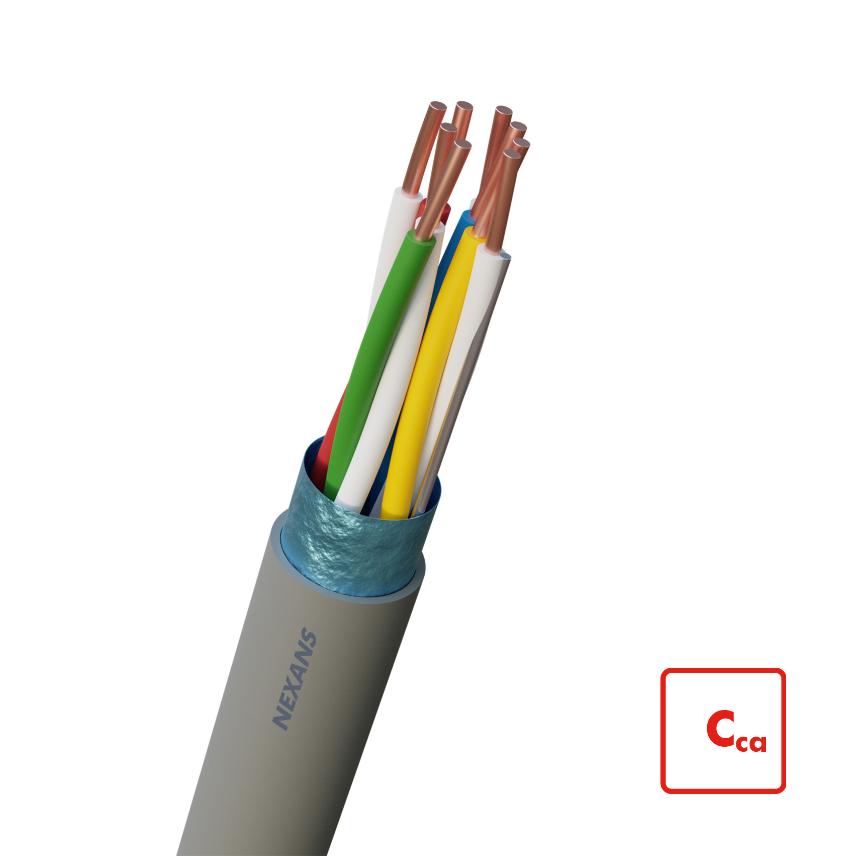

ALSECURE® H(st)H Cca 4x2x0.8 mm grey

Application

ALSECURE® H(st)H Cca is a halogen free signal cable according to fire classification Cca-s1,d1,a1 for usage in signal applications in low voltage installations with a high fire hazard level. The metallised foil protects against interference with external electrical fields.

Description

• Conductor: 0.8 mm solid plain copper, class 1
• Insulation: PE
• Conductors brunched into pairs (except for 1x4x0,8 = 1quad)
  Pairs laid up in concentric layers
• Plastic seperating foil over cable core
• Screening: Metallised foil over drain wire
• Outher sheath: Fire retardant LSZH
  Colour: Grey

Marking

NEXANS-NL ALSECURE® H(st)H Cca NxPxS  mm
N = no. of pairs, P = pair or quad, S = section in mm

Core Identification

according NEN 1597 (see technical data, table A)
