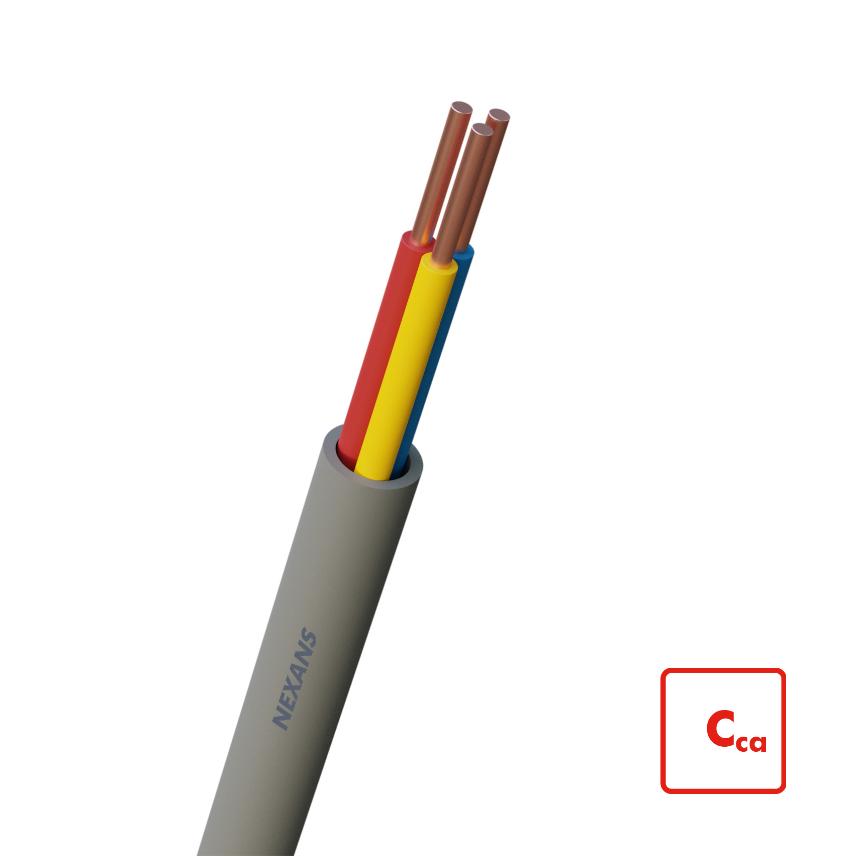

ALSECURE® HH Cca 3x0.8 mm grey
ALSECURE® HH Cca 3x0.8 mm grey
Nexans HH Cca is a halogenfree signal cable according to fire classification Cca-s1,d1,a1 for usage in low voltage installations with a high fire hazard level
Read more- Nexans ref. : 10538791
- EAN : 5413404313334
Description
Description
Standards
-
TestIEC 60332-1
Application
Nexans HH Cca is a halogenfree signal cable according to fire classification Cca-s1,d1,a1 for usage in signal applications in low voltage installations with a high fire hazard level.
Description
- Solid plain copper conductor, 0.8 mm
- PE conductor insulation
- Conductors laid up in concentric layers
- Fire retardant grey or white LSZH outer sheath
Core Identification
according NEN 1597 (see technical data, table A)
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Insulation
HFFR
Outer sheath
HFFRLS compound
Sheath colour
Grey
Conductor material
Plain copper
Conductor flexibility
Solid
Conductor shape
Round solid
Core identification
Red,Blue,Yellow
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Conductor diameter
0.8 mm
Approximate weight
43 kg/km
Nominal outer diameter
5.1 mm
Diameter over insulation
- mm
Electrical characteristics
Electrical characteristics
Ohmical resistance of the insulation
1000 MOhm.km
Breakdown voltage
0.8 kV
Maximum operating voltage
150 V
Max. DC resistance of the conductor at 20°C
38.2 Ohm/km
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Mechanical resistance to impacts
Normal domestic use
Usage characteristics
Usage characteristics
Packaging
Cut to length
Field of application
Indoor
Ambient installation temperature, range
-5 ... 50 °C
Operating temperature, range
-15 ... 70 °C
Bending factor when laying
10 (xD)
Resistance to vibrations
No
Resources
Resources
Selling & delivery Information
Marking
NEXANS HH Cca n X s mm OF ****
n = no. of conductors, s = diameter in mm, OF = traceability code
Declaration of Performance
- Declaration of Performance n� : 1000674-BEBU
- Certification Date : 12/1/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 1+
- Notified body : NB 2658
- Declared performance : Cca-s1,d1,a1
