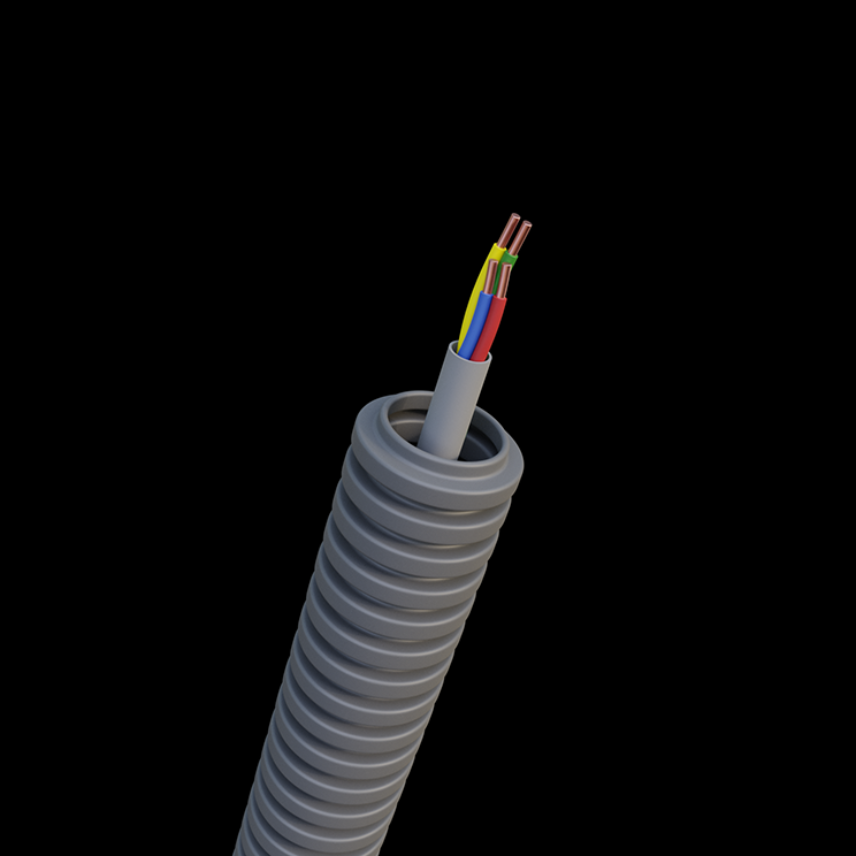

N-LINE®16 HH Cca 4x0.8 mm grey
N-LINE®16 HH Cca 4x0.8 mm grey
N-LINE®
N-LINE®16 HH Cca 4x0,8 mm grey
Read more- Nexans ref. : 10572438
- EAN : 5413404330881
Description
Description
Standards
-
ProductNEN-EN-IEC-61386-22
-
TestEN 50267-2-1
Application
Nexans N-LINE® prewired tubes with halogen wires inside. N-LINE® is packaged on MOBIWAY™ drums carrying 100 metres of tube.
Nexans N-LINE® tubes are available in 9 different configurations of 16mm or 20mm. Nexans N-Line® is made from 30% recycled plastic. The wires inside are suitable for fire class Cca-s1-d1-a1.
Design
- Tube: 30% recycled PVC
- Wires inside: H07z1-U Cca, HH Cca & U/UTP Cat6 Cca
- Packaging: Mobiway drums
- Length: 16mm 100 meter conduit; 20mm 80 meter conduit
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Construction type
Prewired conduit
Colour
Grey
Type of cable
Signal cables
Conductor shape
Round, massive
Conductor flexibility
Solid class 1
Halogen free
Yes
Insulation
Halogen-free
Conductor material
Copper
With Green/Yellow core
No
Core identification
Red, Blue, Yellow, Green
Insulating material
Halogen free thermoplastic material
Dimensional characteristics
Dimensional characteristics
Tube diameter
16 mm
Number of cores
4
Conductor cross-section
0.8 mm²
Conductor cross-section, range
... mm²
Approximate weight
133 kg/km
Average insulation thickness
- mm
Conductor diameter
- mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
150 / 250 (300) V
Permissible current rating in open air
- A
Voltage drop, single phase
- V/A.km
Usage characteristics
Usage characteristics
Field of application
Indoor
Max. conductor temperature in service
- °C
Operating temperature, range
-5 ... 70 °C
Chemical resistance
Medium
Packaging
MOBIWAY™Refill
Length
100 m
