N-LINE®20 H07Z1-U 3G2.5+2x1.5 mm2
N-LINE®20 H07Z1-U 3G2.5+2x1.5 mm2
N-LINE®

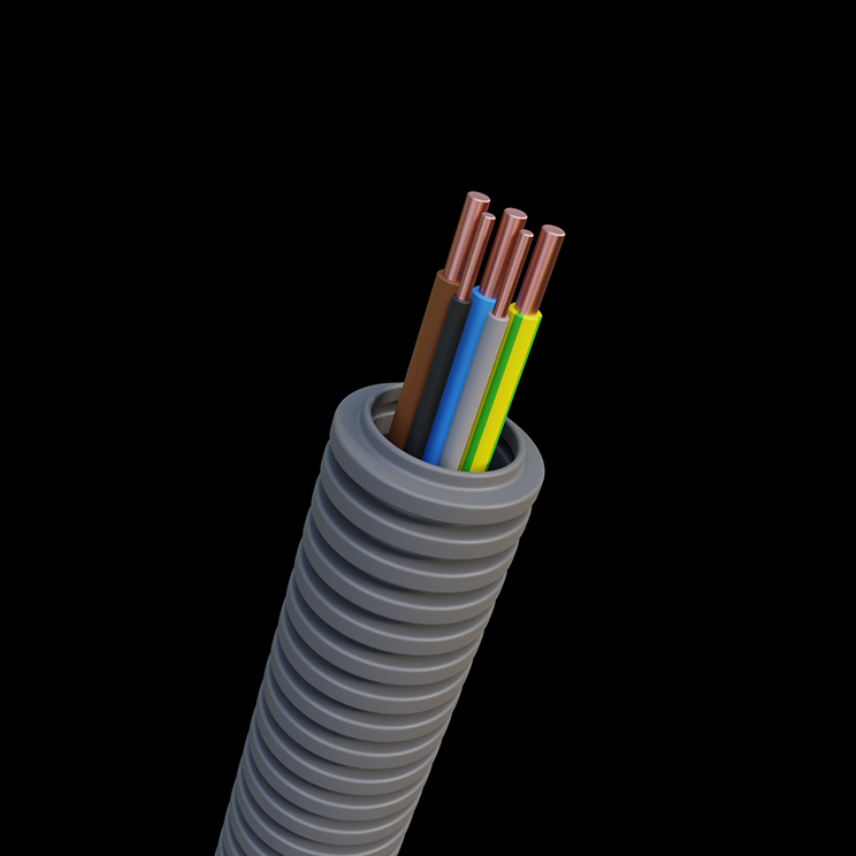

N-LINE®20 H07Z1-U Cca 3G2,5+2x1,5 mm² (black-gray)
Read more- Nexans ref. : 10572435
- EAN : 5413404330850
Description
Description
Standards
-
ProductNEN-EN-IEC-61386-22
-
TestEN 50267-2-1
Application
N-LINE® prewired tubes with halogen wires inside. N-LINE® is packaged on MOBIWAY™ drums carrying 100 metres of tube.
N-LINE® tubes are available in 9 different configurations of 16mm or 20mm. Nexans N-Line® is made from 30% recycled plastic. The wires inside are suitable for fire class Cca-s1-d1-a1.
Design
- Tube: 30% recycled PVC
- Wires inside: H07z1-U Cca, HH Cca & U/UTP Cat6 Cca
- Packaging: Mobiway drums
- Length: 16mm 100 meter conduit; 20mm 80 meter conduit
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Construction type
Prewired conduit
Colour
Grey
Type of cable
Installation wire
Conductor shape
Round, massive
Conductor flexibility
Solid class 1
Halogen free
Yes
Insulation
Halogen-free
Conductor material
Copper
With Green/Yellow core
Yes
Core identification
Blue, brown, green/yellow + black, grey
Insulating material
Halogen free thermoplastic material
Dimensional characteristics
Dimensional characteristics
Tube diameter
20 mm
Number of cores
5
Conductor cross-section
- mm²
Conductor cross-section, range
1.5 ... 2.5 mm²
Approximate weight
190 kg/km
Average insulation thickness
- mm
Conductor diameter
- mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Permissible current rating in open air
- A
Voltage drop, single phase
- V/A.km
Usage characteristics
Usage characteristics
Field of application
Indoor
Max. conductor temperature in service
- °C
Operating temperature, range
-5 ... 60 °C
Chemical resistance
Medium
Packaging
MOBIWAY™Refill
Length
100 m
