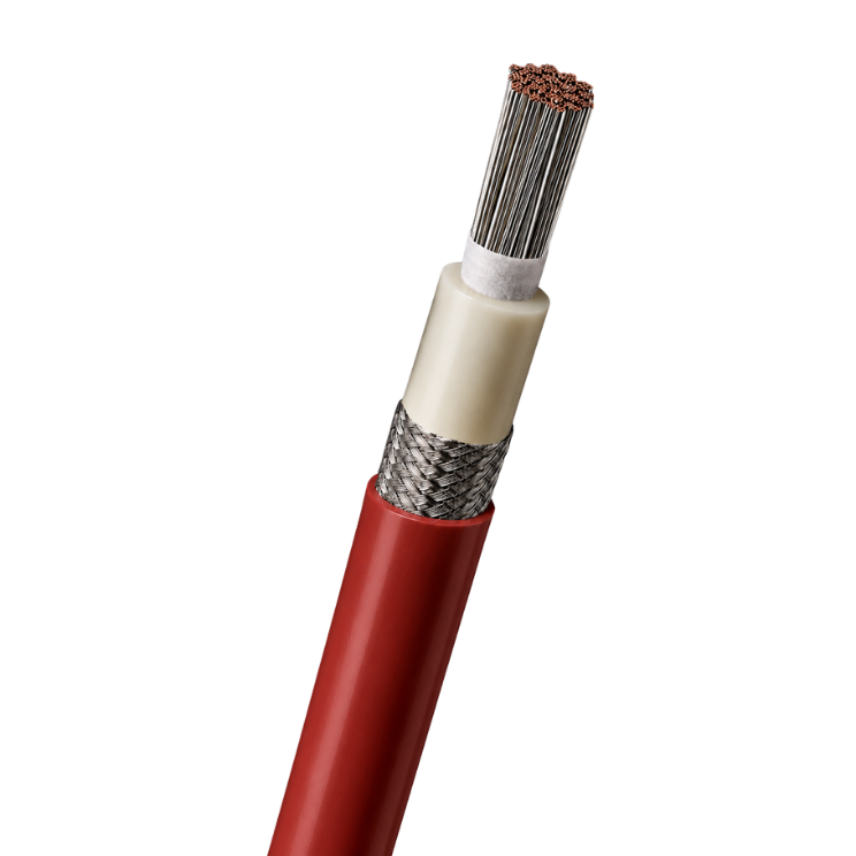

Nexans SIWO-KUL® S30 3.3 / 4.2 kV
Nexans SIWO-KUL® S30 3.3 / 4.2 kV
SIWO-KUL® S30 3.3/4.2 kV cables are designed with a COPPER braid SCREEN to avoid EMC interference with SILICONE sheath
Read moreSIWO-KUL S30 1x4,0 3,3/4,2 kV RD
Nexans ref. 10213506
- Packaging: Cut to length (m)
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 10.4 mm
SIWO-KUL S30 1x16 3,3/4,2 kV RD
Nexans ref. 10216664
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 14.5 mm
SIWO-KUL S30 1x25 3,3/4,2 kV RD
Nexans ref. 10529763
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 16.1 mm
SIWO-KUL S30 1x35 3,3/4,2 kV RD
Nexans ref. 60500734
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 17.6 mm
SIWO-KUL S30 1x50 3,3/4,2 kV RD
Nexans ref. 10219186
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 20.3 mm
SIWO-KUL S30 1x70 3,3/4,2 kV RD
Nexans ref. 60009682
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 22.1 mm
SIWO-KUL S30 1x95 3,3/4,2 kV RD
Nexans ref. 60500535
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 24.9 mm
SIWO-KUL S30 1x120 3,3/4,2 kV RD
Nexans ref. 60500736
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 26.8 mm
SIWO-KUL S30 1x150 3,3/4,2 kV RD
Nexans ref. 10211398
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 29.2 mm
SIWO-KUL S30 1x185 3,3/4,2 kV RD
Nexans ref. 60500537
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 31.2 mm
SIWO-KUL S30 1x240 3,3/4,2 kV RD
Nexans ref. 10501404
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 33.6 mm
SIWO-KUL S30 1x300 3,3/4,2 kV RD
Nexans ref. 60500738
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 37.2 mm
Description
Description
Standards
-
ProductCSA C22.2 N° 210-05; IEC 60228
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Application
- Connection of rotating machines windings, like motors, alternators, generators.
- Cabling of static devices, like power converters, motor drives, power cabinets, transformers
- Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems
Construction
- Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
- High grade silicon rubber insulation
- Tin platted Cu braid for EMC protection screen
- Silicone outer sheath
Properties
- Operating temperature in continuous mode -55°C to +180°C
- Resistance to thermal shocks
- Type approval certificate : Lloyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
- Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Operating voltage
3.3 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 180 °C
Chemical resistance
Good
Oil resistance
Yes
Flame retardant
IEC 60332-1
Fire retardant
IEC 60332-3
Fire resistant
IEC 60331
Gases corrosivity
IEC 60754-1; IEC 60754-2
Smoke density
IEC 61034
