SIWO-KUL S10 1x10 3,3/4,2 kV RD
SIWO-KUL S10 1x10 3,3/4,2 kV RD

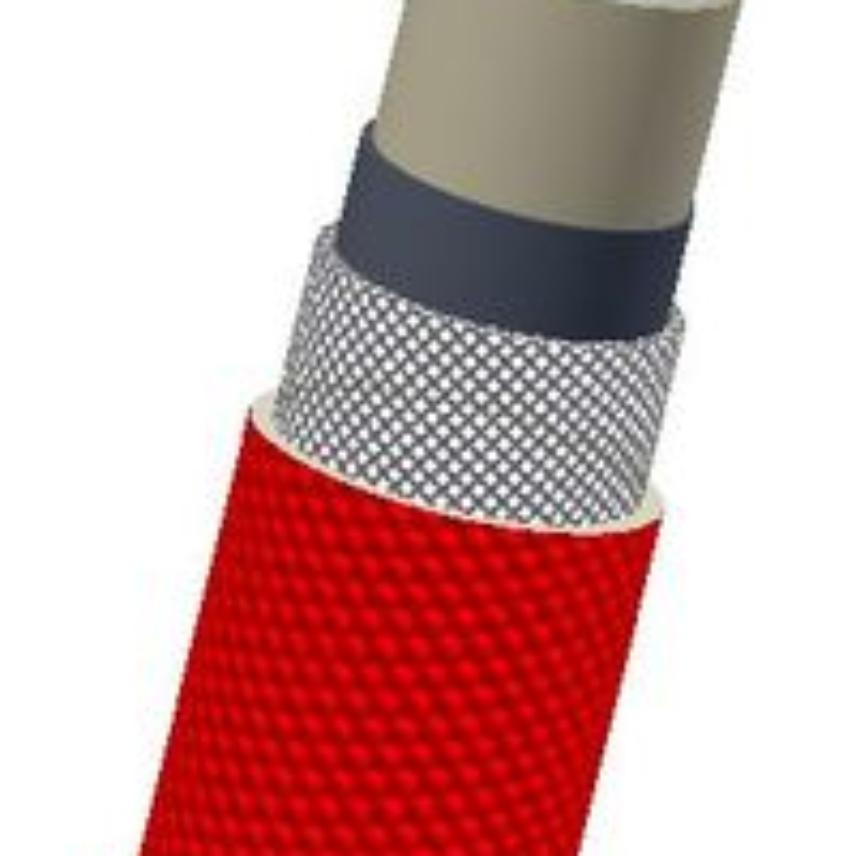

SIWO-KUL® S10 3.3/4.2 kV cables are designed with a COPPER braid SCREEN to avoid EMC interference and with a PET braid, PUR varnished
Read more- Nexans ref. : 10542201
- EAN : 7611755007386
Description
Description
Standards
-
ProductDIN VDE 0472; NF F 16-101/BF1
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3; IEEE 383; VERITAS N°09555/A0 BV ACE1/723 PC 2502H
-
InternationalLLOYDS Reg. 91/00126(E1); UIC 895
-
NationalBSS 6195-T5-C-D-E-F
Application
- Connection of rotating machines windings, like motors, alternators, generators.
- Cabling of static devices, like power converters, motor drives, power cabinets, transformers
- Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems
Construction
- Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
- High grade silicon rubber insulation
- Tin platted Cu braid for EMC protection screen
- Mechanical protection by PUR varnished synthetic fibre braid for enhanced friction resistanc
Properties
- Operating temperature in continuous mode -55°C to +180°C
- Resistance to thermal shocks
- Type approval certificate : Lloyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
- Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Tinned copper
Conductor flexibility
Flexible class 5
Insulation
Special Silicone
Halogen free
Yes
Outer sheath
Synthetic yarn braiding
Construction type
78 x 0.40
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
10 mm²
Nominal outer diameter
9.6 mm
Approximate weight
171 kg/km
Conductor diameter
3.8 mm
Electrical characteristics
Electrical characteristics
Operating voltage
3.3 kV
Test voltage
10 kV
Max. DC resistance of the conductor at 20°C
1.95 Ohm/km
Breakdown voltage
20 kV
Breakdown field strength (kV/mm)
> 20
Loss factor tan d
< 10-2
Dielectric constant ER
3 ... 4
Mechanical characteristics
Mechanical characteristics
Minimum Tensile Strength
8 MPa
Cable flexibility
Flexible
Elongation at break of insulation (%)
> 250
Hardness of insulation (Shore A)
65 ... 70
Usage characteristics
Usage characteristics
Minimum static operating bending radius
66 mm
Operating temperature, range
-55 ... 180 °C
Chemical resistance
Good
Oil resistance
Yes
Flame retardant
IEC 60332-1
Fire retardant
IEC 60332-3
Fire resistant
IEC 60331
Gases corrosivity
IEC 60754-1; IEC 60754-2
Smoke density
IEC 61034
Packaging
Cut to length
