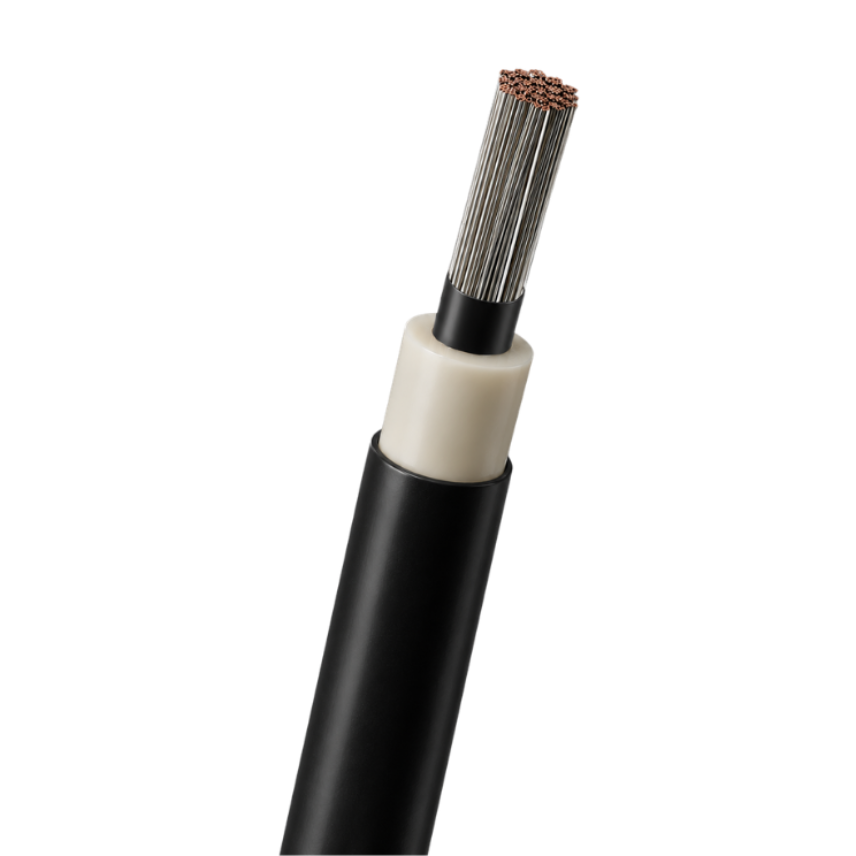

Nexans SIWO-KUL® D30 13.8 / 15 kV

Products

SIWO-KUL D30 1x4,0 13,8/15 kV BK

Nexans ref. 10508737

  • Packaging: Cut to length (m)
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 9.95 mm



SIWO-KUL D30 1x6,0 13,8/15 kV BK

Nexans ref. 10509197

  • Packaging: Cut to length (m)
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 10.4 mm



SIWO-KUL D30 1x10 13,8/15 kV BK

Nexans ref. 10505589

  • Packaging: Cut to length (m)
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 11.45 mm



SIWO-KUL D30 1x16 13,8/15 kV BK

Nexans ref. 10504209

  • Packaging: Cut to length (m)
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 13.25 mm



SIWO-KUL D30 1x25 13,8/15 kV BK

Nexans ref. 10508628

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 14.8 mm



SIWO-KUL D30 1x35 13,8/15 kV BK

Nexans ref. 10505284

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 15.9 mm



SIWO-KUL D30 1x50 13,8/15 kV BK

Nexans ref. 10549486

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 17.9 mm



SIWO-KUL D30 1x70 13,8/15 kV BK

Nexans ref. 10507289

  • Packaging: Cut to length (m)
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 19.8 mm



SIWO-KUL D30 1x95 13,8/15 kV BK

Nexans ref. 10504210

  • Packaging: Cut to length (m)
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 21.5 mm



SIWO-KUL D30 1x120 13,8/15 kV BK

Nexans ref. 10508542

  • Packaging: Cut to length (m)
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 23.4 mm



SIWO-KUL D30 1x150 13,8/15 kV BK

Nexans ref. 10509100

  • Packaging: Cut to length (m)
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 26.0 mm



SIWO-KUL D30 1x185 13,8/15 kV BK

Nexans ref. 10509101

  • Packaging: Cut to length (m)
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 27.5 mm



SIWO-KUL D30 1x240 13,8/15 kV BK

Nexans ref. 10509102

  • Packaging: Cut to length (m)
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 30.2 mm



SIWO-KUL D30 1x300 13,8/15 kV BK

Nexans ref. 10509103

  • Packaging: Cut to length (m)
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 33.3 mm



Description

Description

Standards

  • Product
    CSA C22.2 N° 210-05; IEC 60228; UL 758
  • Installation
    IEC 60092
  • Test
    IEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034

Application

  • Connection of rotating machines windings, like motors, alternators, generators
  • Cabling of static devices, like power converters, motor drives, power cabinets, transformers
  • Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems

Construction

  • Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
  • Co-extruded semiconductor layer
  • Inner layer in high grade silicon rubber insulation
  • Outer layer in colored high grade silicon rubber
  • Co-extruded semi-conductor reduces partial discharge and increases cable life

Properties

  • Operating temperature in continuous mode -55°C to +180°C
  • Resistance to thermal shocks



  • Type approval certificate : Lloyds Register LR21139304TA
  • Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
  • Certificate of compliance : UL758 AWM Style 3643, file : AVLV2.E45073
  • Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Halogen free
Yes

Electrical characteristics

Electrical characteristics

Operating voltage
13.8 kV
Breakdown field strength (kV/mm)
> 20
Maximum operating voltage
15 kV

Mechanical characteristics

Mechanical characteristics

Elongation at break of insulation (%)
> 250
Minimum Tensile Strength
8 MPa
