VDbox H07V-U Eca 2.5 GR-YE 5D100

Description

Description

Standards

  • Product
    EN 50525-2-31; IEC 60228

Application

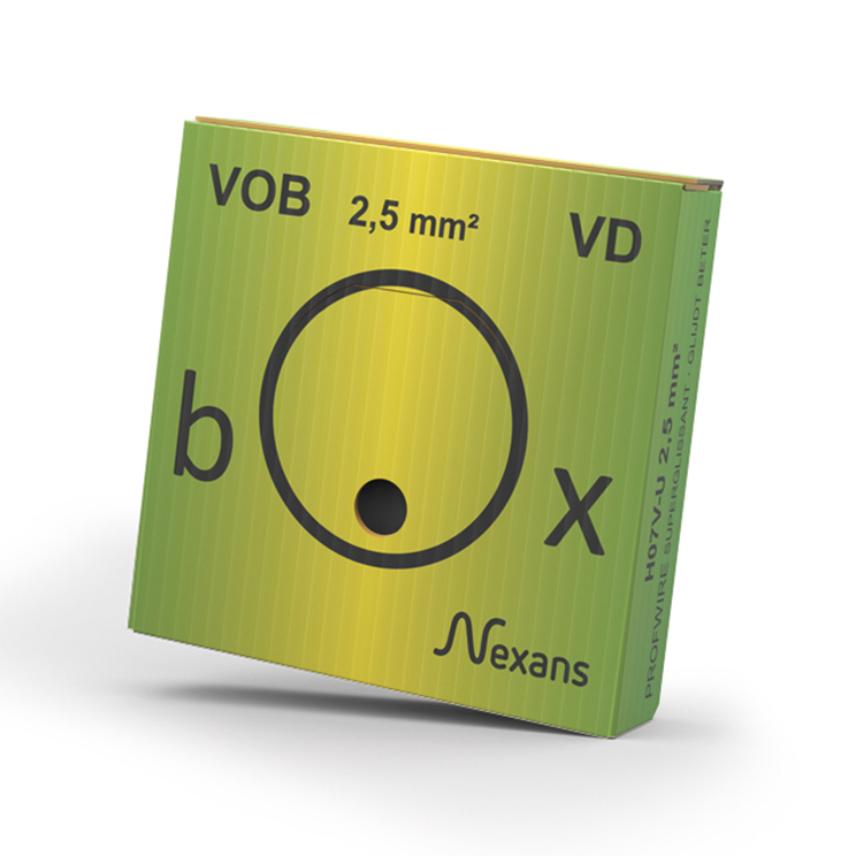

The colored box packaging VOBbox is made of special strong moisture resistant cardboard. Easy to use in humid conditions or in bad weather. The VOBbox is available in 6 different colors, with the color of the box corresponding to the color of the wire inside .

H07V-U Eca is an installation wire according to fire classification Eca for use indoor in residential and similar installations with a low fire hazard level. They have a low friction coefficient and are suitable for fixed installation in tubes or skirting-board systems.

Design

  • Conductor:    Bare copper, solid, class 1
  • Insulation:     Special PVC, with enhanced sliding properties
  • Section:        1.5 mm² and 2.5 mm²

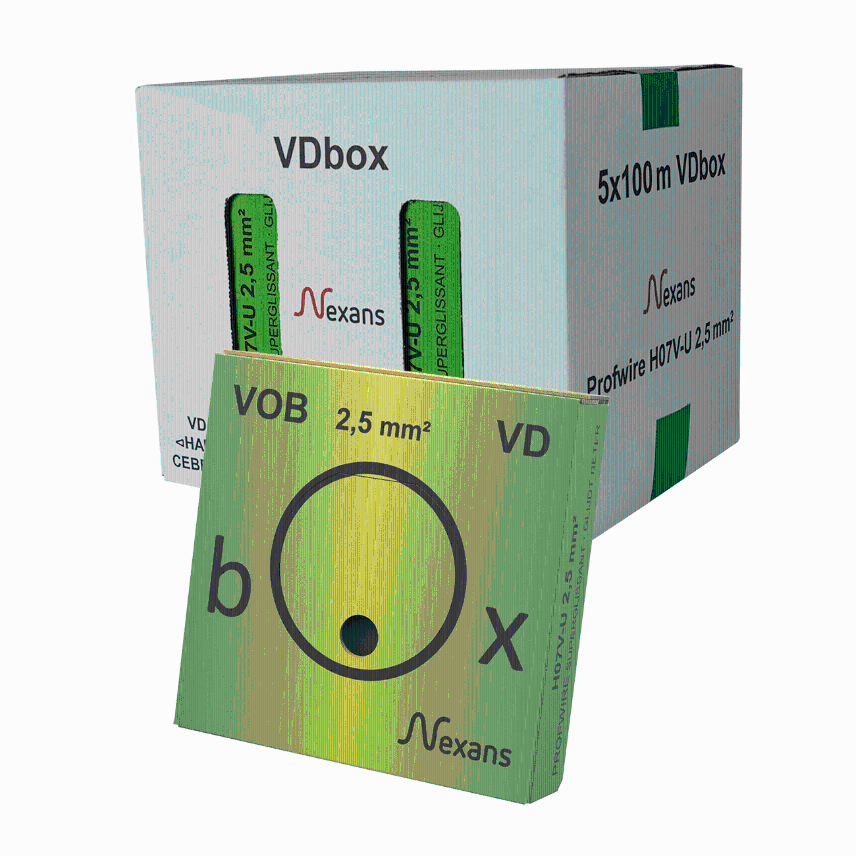

  • Packaging:   100m in the VOBbox, a moisture-proof cardboard with color recognition



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Round, massive
Conductor flexibility
Solid class 1
Insulation
PVC
Wire colour
Green / yellow
Halogen free
No

Dimensional characteristics

Dimensional characteristics

Number of cores
1
Conductor cross-section
2.5 mm²
Average insulation thickness
0.8 mm
Nominal outer diameter
3.4 mm
Approximate weight
30 kg/km

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V
Permissible current rating in open air
24 A
Voltage drop, single phase
14.8 V/A.km

Usage characteristics

Usage characteristics

Bending factor when laying
4 (xD)
Field of application
Indoor
Max. conductor temperature in service
70 °C
Operating temperature, range
-15 ... 70 °C
Resistance to vibrations
Moderate
Chemical resistance
Medium
Packaging
Box
Length
100 m
Minimum installation temperature
5 °C

Resources

Resources

Declaration of Performance

  • Declaration of Performance n� : 1000261-BEBU
  • Certification Date : 12/1/23
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : NB 2659
  • Declared performance : Eca
