VOB-VDBOX H07V-U Eca 1.5 BLACK D100 P24km
VOB-VDBOX H07V-U Eca 1.5 BLACK D100 P24km

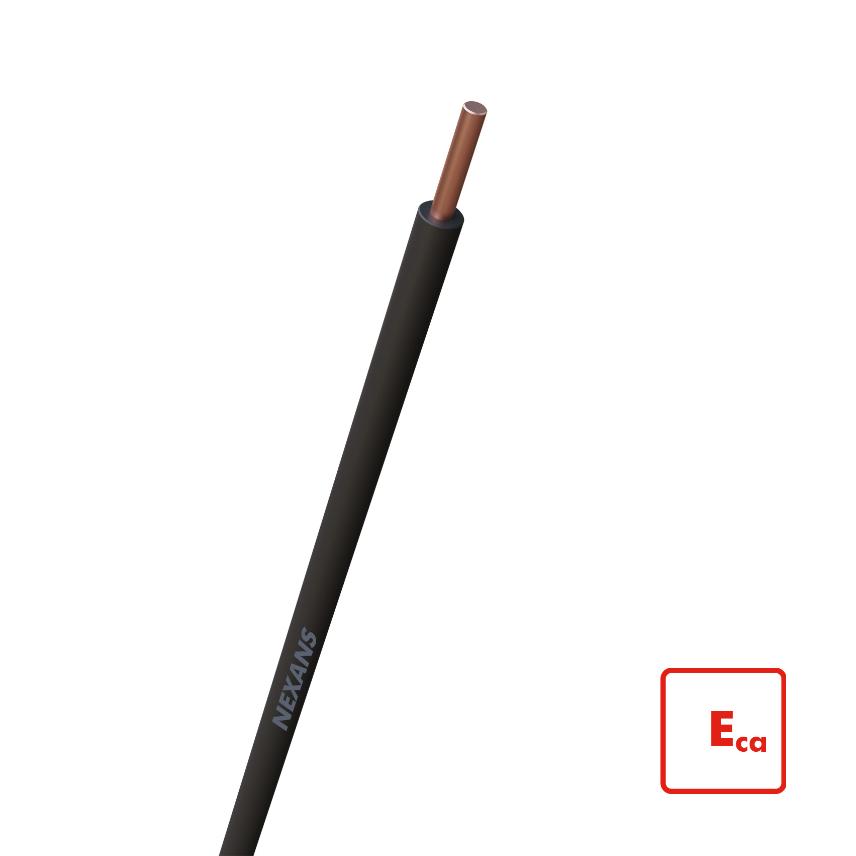

H07V-U Eca is an installation wire in a handy VOBbox / VDbox. H07V-U Eca is a solid PVC installation wire intended for protected fixed domestic and industrial installations. Installation may be in pipes or gutters embedded in the wall or floor or surface mounted. H07V-U Eca has a very low friction factor which makes it easy to slide and pull into pipes. In addition, H07V-U Eca is easy to strip, making it quick to process. The box of the VOBbox has the same color as the wire in it. The section is also clearly legible on all sides. This ensures that you have the right wire in place immediately. The cardboard of the VOBbox-VDbox is also extra moisture-resistant, ideal for damp construction sites. Furthermore, the box is designed to keep spiral formation to a minimum. This further facilitates the wire pulling and makes it even easier to work with. H07V-U Eca meets fire class Eca according to EN 50575.
Read more- Nexans ref. : 10533330
- EAN : 5413404304394
Description
Description
Standards
-
ProductEN 50525-2-31; IEC 60228
Application

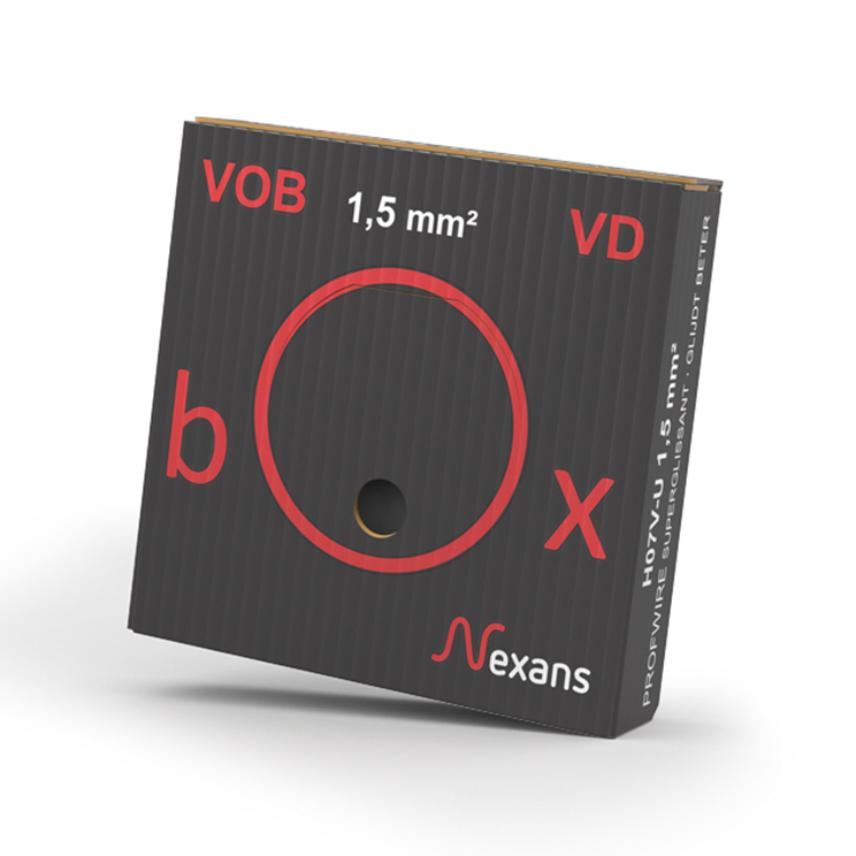

The colored box packaging VOBbox is made of special strong moisture resistant cardboard. Easy to use in humid conditions or in bad weather. The VOBbox is available in 6 different colors, with the color of the box corresponding to the color of the wire inside .
H07V-U Eca is an installation wire according to fire classification Eca for use indoor in residential and similar installations with a low fire hazard level. They have a low friction coefficient and are suitable for fixed installation in tubes or skirting-board systems.
Design
- Conductor: Bare copper, solid, class 1
- Insulation: Special PVC, with enhanced sliding properties
- Section: 1.5 mm² and 2.5 mm²
- Packaging: 100m in the VOBbox, a moisture-proof cardboard with color recognition
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Declaration of Performance
- Declaration of Performance n� : 1000261-BEBU
- Certification Date : 12/1/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : NB 2659
- Declared performance : Eca
