Nbox YMvK Dca-s2 Easy Strippable

Applications

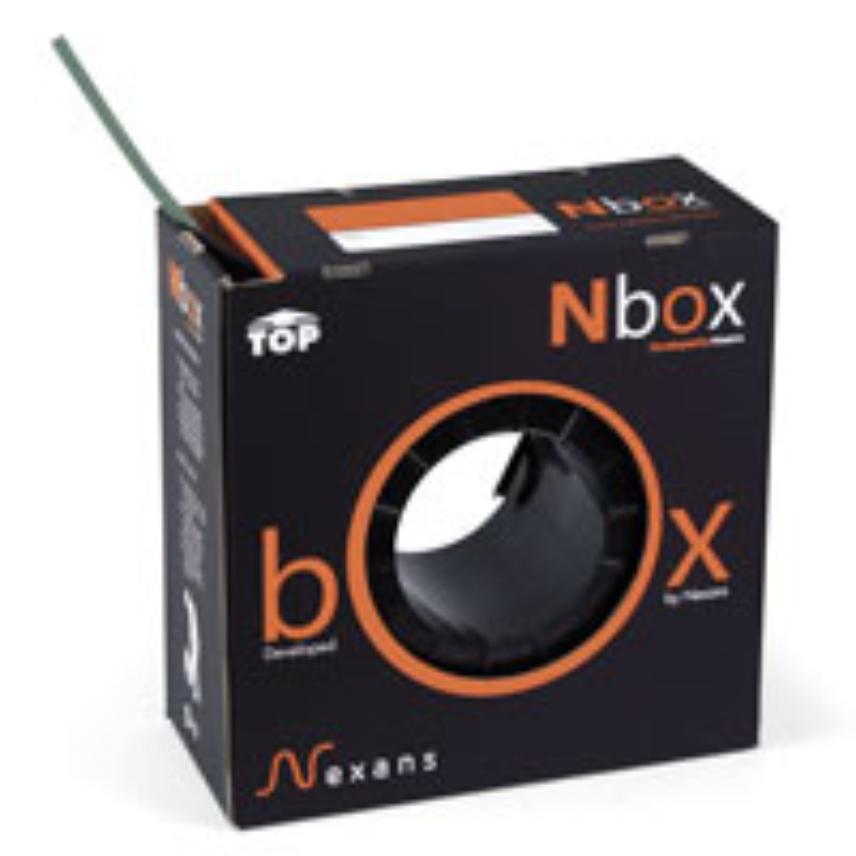

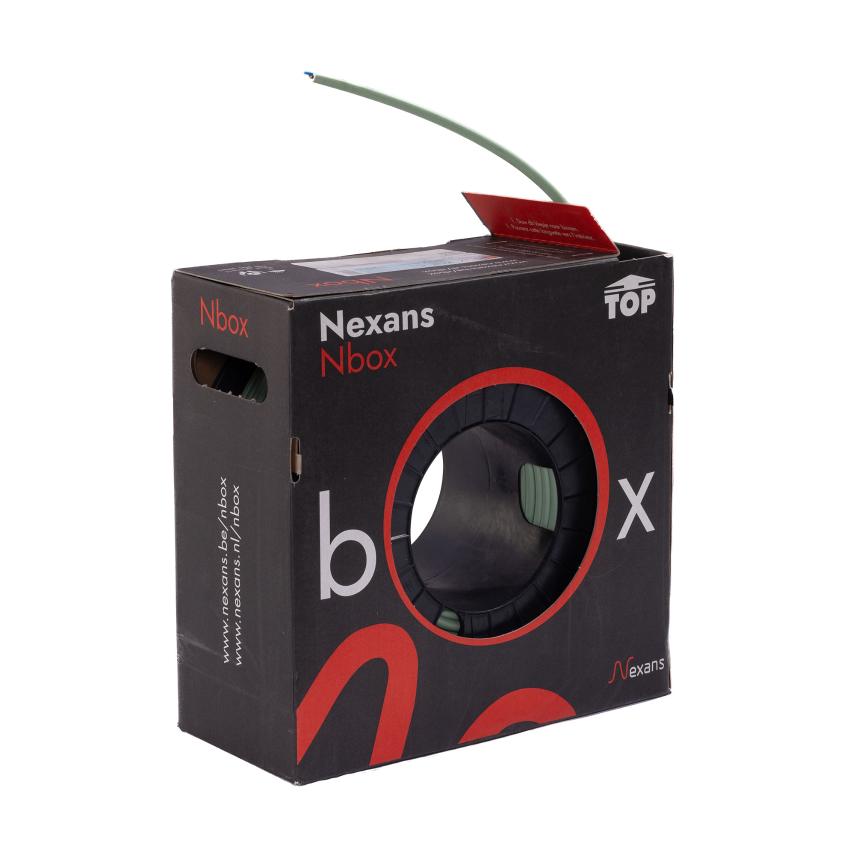

The Nbox is an unwinding system for installation cables. The boxed-shaped Nbox are stackable in van & store. It  does have handles to carry with less effort and it is useble both indoors & outdoors, thanks to the moisture resistant cardboard.

YMvK Dca-2 0.6/1 kV is a power cable according to fire classification Dca-s2,d2,a3, for usage in low voltage installations up to 0.6/1 kV in housing, residential and similar installations with a medium fire hazard level.  YMvK Dca 0.6/1 kV is suitable for fixed installation in sight, with clamps or saddles. Use of this cable in special trays and ducts is allowed. This cable has a reduced propagation of fire in cable bunches.


Design

1. Conductor: Bare copper, solid, class 1
2. Insulation: XLPE
3. Inner covering: filling compound
4. Outer sheath: PVC
   Colour: Grey
   UV resistance: Yes
5. Packaging: Nbox 3G2,5 mm2 100M or Nbox 5G2,5 mm2 80M
