ALSECURE YMz1K Cca 4G16 mm2

Application

Nexans YMz1K Cca is a halogen free low smoke power cable for general use in construction works subject to performance requirements on reaction to fire. Nexans YMz1K Cca is suitable for application in low voltage installations up to 0.6/1 kV, according to NEN 1010. It meets the requirements according to fire classification Cca-s1,d1,a1 for buildings and civil engineering works with a high fire hazard level (NEN 8012).

Available from 35 mm2: Nexans YMz1K Cca FLEX, provided with conductors with increased bendability.

Main benefits

Easy Strippable - Cables (1.5 - 6 mm2) are easy to strip
PEP EcoPassport - EPD environmental passport available
UV Resistant - Our cables passed the 720 hour test according to the test standard EN 50289-4-17 Method A

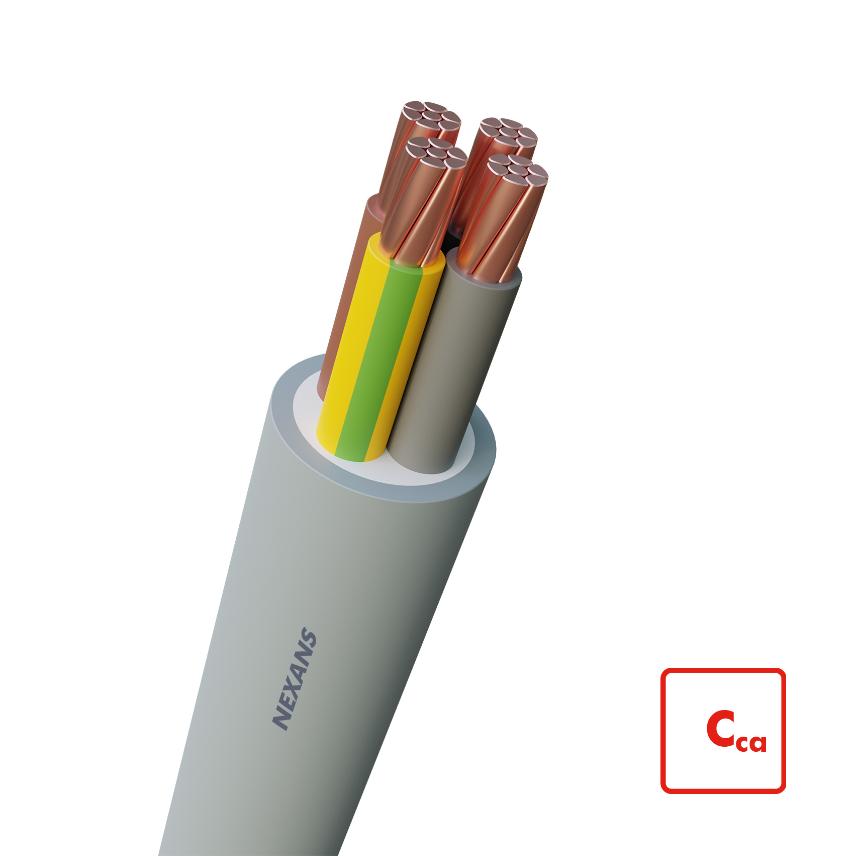

Design

1. Conductor
   Sections till 10 mm2: Bare copper, solid , class 1
   Sections from 10 mm2:  Bare copper, stranded, class 2
2. Insulation: XLPE
3. Inner covering: Halogen free compound
4. Outer sheath: Halogen free compound
   Colour: grey
   UV resistance: Yes
