SIHF
SIHF
SIHF is a flexible cable specially designed for use in e.g. internal wiring, lighting equipment and in general in an environment where high temperature (max 180 C) alterations occur.
Read moreSIHF 2x0.75 mm²
Nexans ref. 10009007 - Country ref. 10009007
- Packaging: Coil (100m)
- Nominal outer diameter: 6.4 mm
- Approximate weight: 63 kg/km
- Conductor cross-section: 0.75 mm²
- Number of cores: 2
SIHF 2x1 mm²
Nexans ref. 10009012 - Country ref. 10009012
- Packaging: Coil (100m)
- Nominal outer diameter: 6.6 mm
- Approximate weight: 71 kg/km
- Conductor cross-section: 1 mm²
- Number of cores: 2
SIHF 2x1.5 mm²
Nexans ref. 10009017 - Country ref. 10009017
- Packaging: Coil (100m)
- Nominal outer diameter: 7.6 mm
- Approximate weight: 97 kg/km
- Conductor cross-section: 1.5 mm²
- Number of cores: 2
SIHF 2x2.5 mm²
Nexans ref. 10009023 - Country ref. 10009023
- Packaging: Coil (100m)
- Nominal outer diameter: 9.2 mm
- Approximate weight: 146 kg/km
- Conductor cross-section: 2.5 mm²
- Number of cores: 2
SIHF 3G0.75 mm²
Nexans ref. 10009008 - Country ref. 10009008
- Packaging: Coil (100m)
- Nominal outer diameter: 7.0 mm
- Approximate weight: 76 kg/km
- Conductor cross-section: 0.75 mm²
- Number of cores: 3
SIHF 3G1 mm²
Nexans ref. 10009013 - Country ref. 10009013
- Packaging: Coil (100m)
- Nominal outer diameter: 7.4 mm
- Approximate weight: 93 kg/km
- Conductor cross-section: 1 mm²
- Number of cores: 3
SIHF 3G1.5 mm²
Nexans ref. 10009018 - Country ref. 10009018
- Packaging: Coil (100m)
- Nominal outer diameter: 8.0 mm
- Approximate weight: 117 kg/km
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
SIHF 3G2.5 mm²
Nexans ref. 10009024 - Country ref. 10009024
- Packaging: Coil (100m)
- Nominal outer diameter: 9.7 mm
- Approximate weight: 179 kg/km
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
Description
Description
Standards
-
ProductDIN VDE 0250
Application
SIHF is a flexible cable specially designed for use in e.g. internal wiring, lighting equipment and in general in an environment where high temperature alterations occur. This cable has a restricted mechanical resistance.
Design
- Conductor: Tinned copper Stranded, class 5
- Insulation: Silicon rubber
- Outer sheath: Silicon rubber
Colour: brick red
Core Identification

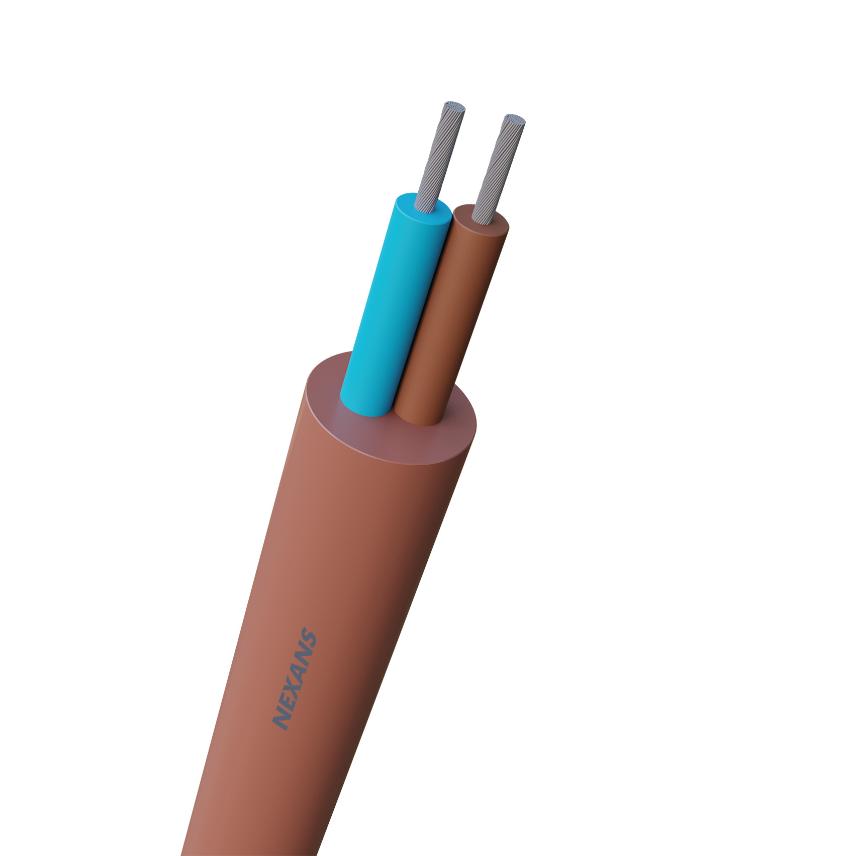

2 cores: brown-light blue

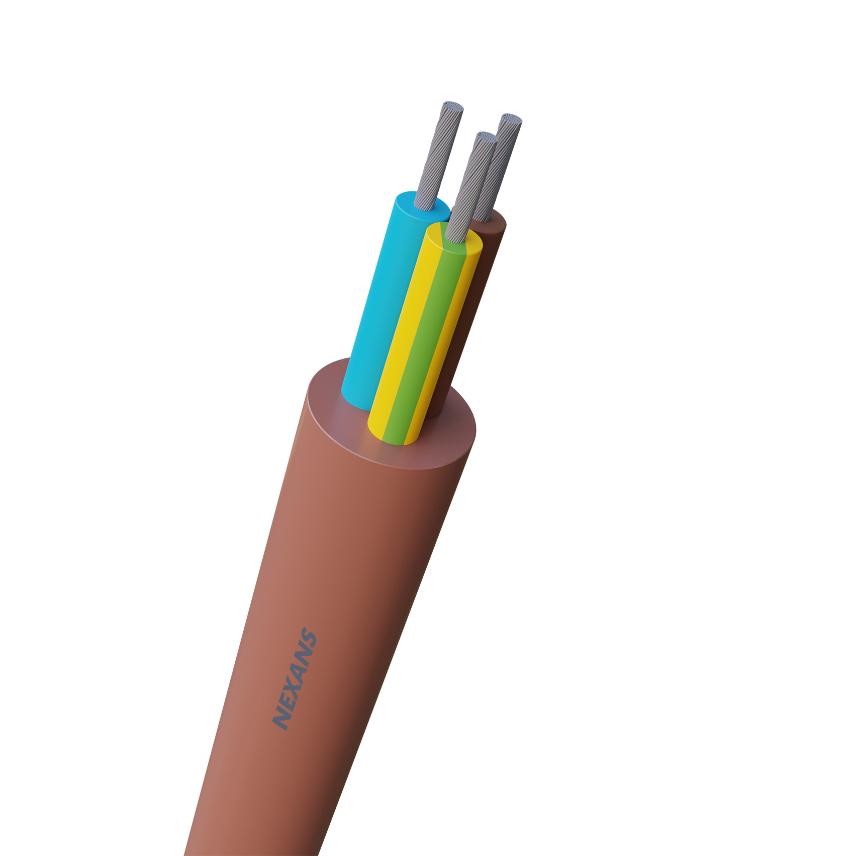

3 cores: green/yellow-brown-light blue
4 cores: green/yellow-black-grey-brown
5 cores: green/yellow-black-brown-light blue-grey
>5 cores: black, white printed numbers and green/yellow
